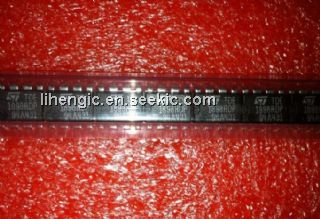

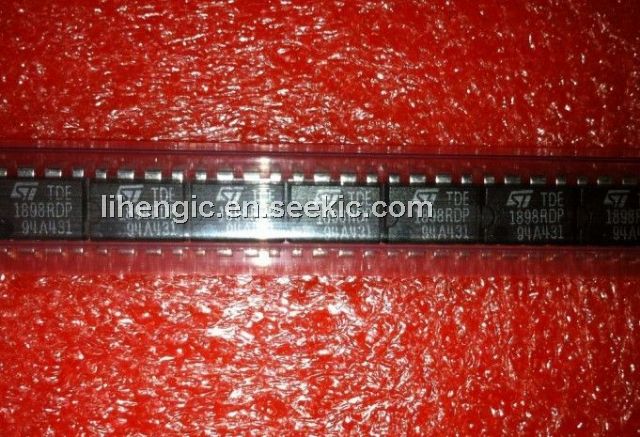

TDE1898RDP

power switch, 0.5A, 18 to 35V, SIP9

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.73~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 50 :	0.80 / Piece
100 ~ 200 :	0.76 / Piece
500 ~ 1000 :	0.73 / Piece

PartNumber:: TDE1898RDP

Brand:: STMicroelectronics - ST | Pack: | D/C: 94+

Availability:: Supply Ability: 5700/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-04

From Other Seller

Part Number:TDE1898RDP
US $0.73 - 0.80
Quantity:

piece

Product Summary

The TDE1898RDP is a monolithic Intelligent power switch in Multipower BCD Technology for driving inductive or resistive loads. Diagnostic for CPU feedback and extensive use of electrical protections make the TDE1898RDP inherently indistructible and suitable for generalpurpose industrial applications.

Parametrics

TDE1898RDP absolute maximum ratings: (1) Supply Voltage (Pins3-1) (T <10ms) Vs: 50V; (2) Supply to Output Differential Voltage. See also VCI3-2 (Pins3-2) : internally limited; (3) Input Voltage (Pins7/8) Vi: -10 to Vs +10V; (4) Differential Input Voltage (Pins 7-8) Vi: 43V; (5) Input Current(Pins 7/8) Ii: 20mA; (6) Output Current (Pins 2-1) .See also ISC: internally limited; (7) Energy from Inductive Load (Tj=85°C) Ei: 200mJ; (8) Power Dissipation.See also THERMAL CHARACTERISTICS.Ptot: internally limited; (9) Operating Temperature Range (Tamb) Top: -25 to +85°C; (10) Storage Temperature Tstg: -55 to 150°C.

Features

TDE1898RDP features: (1) 0.5A output current; (2) 18V to 35V supply voltage range; (3) internal current limiting; (4) thermal shutdown; (5) open ground protection; (6) internal negative voltage clamping to Vs-45V for fast demangetization; (7) differential inputs with large common mode range and threshold hysteresis; (8) undervoltage lockout with hysteresis; (9) open loas detection; (10) two diagonstic outputs; (11) output status LED driver.
