Product Summary

The ADM1232AN is a Microprocessor Supervisory Circuit. The applications of the device are Microprocessor Systems, Portable Equipment, Computers, Controllers, Intelligent Instruments, Automotive Systems, Protection Against Damage Caused by uP Failure.

Parametrics

ADM1232AN absolute maximum ratings: (1)VCC:+5.5 V; (2)Logic Inputs: –0.3 V to VCC + 0.3 V; (3)Storage Temperature Range:–65℃ to +150℃; (4)Lead Temperature (Soldering, 10 sec): +300℃; (5)Vapor Phase (60 sec): +215℃; (6)Infrared (15 sec): +220℃.

Features

ADM1232AN features: (1)Superior Upgrade for MAX1232 and Dallas DS1232; (2)Low Power Consumption (500 μA max); (3)Adjustable Precision Voltage Monitor with +4.5 V and +4.75 V Options; (4)Adjustable STROBE Monitor with 150 ms, 600 ms or 1.2 sec Options; (5)No External Components.

Diagrams

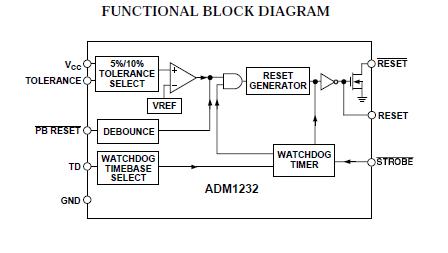

ADM1232AN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

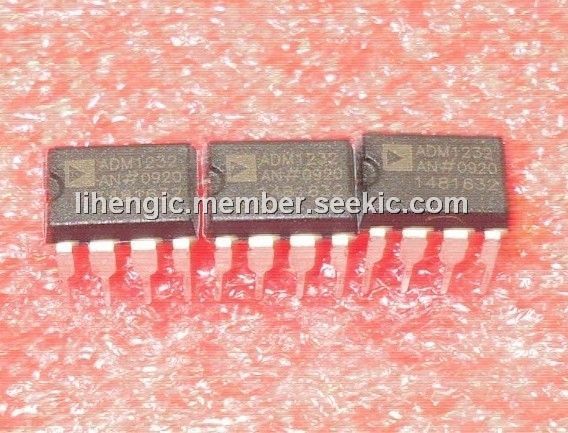

ADM1232AN
ADM1232AN


IC SUPERVISOR FOR CPU 8DIP

Data Sheet

0-250: $0.98
ADM1232ANZ
ADM1232ANZ


IC SUPERVISOR FOR CPU 8DIP

Data Sheet

0-1: $1.32
1-10: $1.19
10-25: $1.07
25-100: $0.96
100-250: $0.85
250-500: $0.75
500-1000: $0.62
1000-2500: $0.58
2500-5000: $0.57
