Product Summary

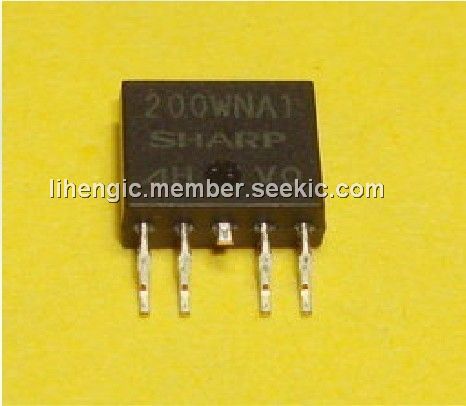

The 200WNA1 is a low power-loss voltage regulator.

Parametrics

200WNA1 absolute maximum ratings: (1)Input voltage VIN: 24V; (2)Power dissipation: 8W; (3)Junction temperature: 150鈩? (4)Operating temperature: -40 to +85鈩? (5)Storage temperature: -40 to +150鈩? (6)Soldering temperature: 260(10s)鈩?

Features

200WNA1 features: (1)Output current : 1A; (2)High isolation voltage VIN:MAX.24 V; (3)Low dissipation current; (4)Built-in ON/OFF function; (5)Built-in overcurrent and overheat protection functions; (6)Built-in ASO protection function; (7)Ceramic capacitor compatible; (8)RoHS directive compliant.
