Product Summary

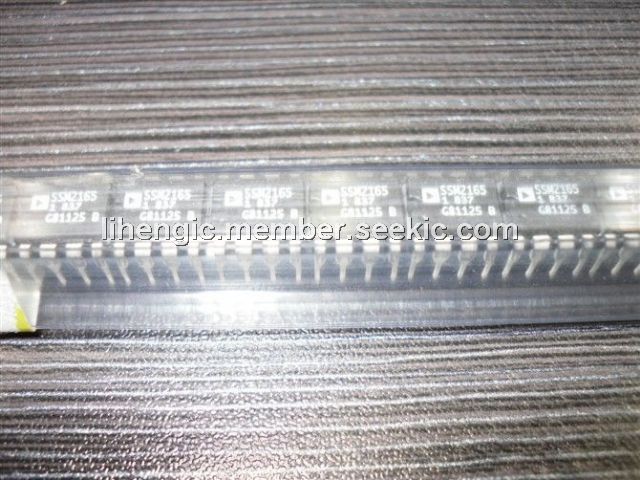

The SSM2165-1P is a complete and flexible solution for conditioning microphone inputs in computer audio systems.It is also excellent for improving vocal clarity in communications and public address systems.The device is available in 8-lead SOIC and P-DIP packages,and guaranteed for operation over the extended industrial temperature range of –40°C to +85°C.
Parametrics
Absolute maximum ratings:(1)supply voltage:+10 V;(2)audio input voltage:supply voltage;(3)operating temperature range:-40°C to +85°C;(4)storage temperature range:-65°C to +150°C;(5)junction temperature(TJ):+150°C;(6)lead temperature (soldering,60 sec):+300°C; (7)ESD RATINGS:883 (Human Body) Model:2.0 kV.
Features
Features:(1)complete microphone conditioner in an 8-Lead package;(2)single +5 V operation;(3)preset noise gate threshold;(4)compression ratio set by external resistor;(5)automatic limiting feature prevents ADC overload;(6)adjustable release time;(7)low noise and distortion;(8)20 kHz bandwidth (+/-1dB);(9)low cost.Also it can be used in microphone preamplifier/processor;computer sound cards;public address/paging systems; communication headsets;telephone conferencing;guitar sustain effects generator and computerized voice recognition;surveillance systems and karaoke and DJ mixers.

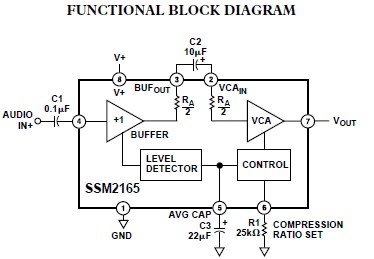

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SSM2165-1P |
Other |
|
Data Sheet |
Negotiable |
|
||||
