Product Summary

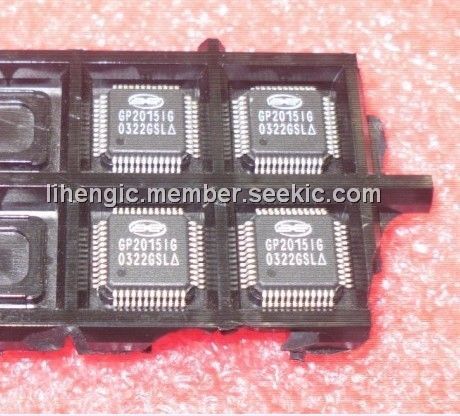

The GP2015IG is a small format RF Front-end for Global Positioning System (GPS) receivers. Equivalent in performance to the GP2010 but in a TQFP package, this product is suited for size-critical applications as the RF area can be reduced by a factor of two to three using miniature surface mount passive components The GP2015IG is designed to operate from either 3 or 5 Volt supplies. The applications of the GP2015IG include C/A Code Global Positioning by Satellite Receivers, Time Standards, Navigation and Surveying.
Parametrics
GP2015IG absolute maximum ratings: (1)Max. Supply Voltage: 7V; (2)Max. RF Input: +15dBm; (3)Max. voltage on any pin: VCC/VDD + 0.5V except LD (pin 21) and PReset (pin 9), which are 5.5V Min; (4)voltage on any pin: VEE - 0.5V; (5)Storage Temperature: -65 to +150℃; (6)Operation Junction Temperature: -40 to +150℃; (7)10MHz Reference Input: 1.5V pk -pk.
Features
GP2015IG features: (1)Ultra miniature TQFP package; (2)Low Voltage Operation (3V - 5V); (3)Low Power - 200mW typ. (3V supply); (4)C/A Code Compatible; (5)On-chip PLL Including Complete VCO; (6)Triple Conversion Receiver; (7)48-Lead Surface Mount Quad Flat-Pack Package; (8)Sign and Magnitude Digital Outputs; (9)Compatible with GP2021 and GP4020 Correlators.

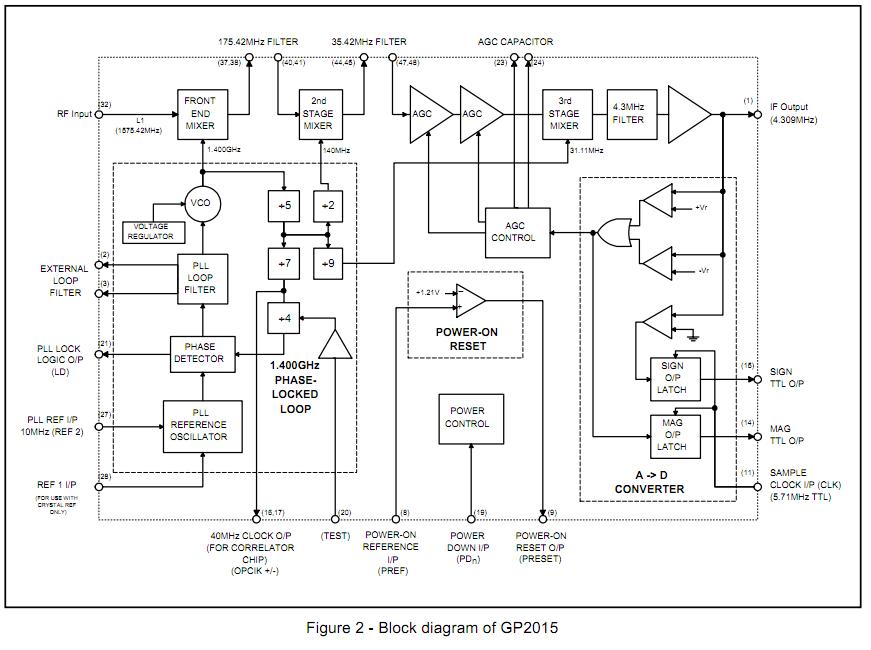

Diagrams
 |
