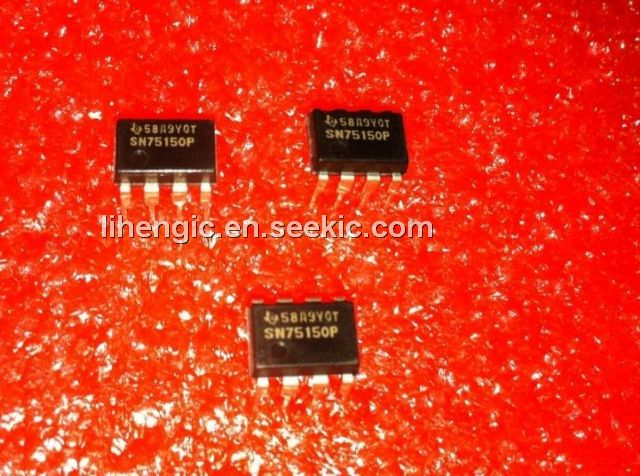

Product Summary

The SN75150P is a monolithic dual line driver designed to satisfy the requirements of the standard interface between data-terminal equipment and data-communication equipment as defined by TIA/EIA-232-F. Operation of the SN75150P is from 12-V and ¤C12-V power supplies. The SN75150P is characterized for operation from 0 to 70°C.

Parametrics

SN75150P absolute maximum ratings: (1) Supply voltage, VCC+: 15V; (2) Supply voltage, Vcc-: -15V; (3) Supply voltage, VI: 15V; (4) Applied output voltage: ±25V; (5) Package thermal impedance, θJA: 104°C/W; (6) Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260°C; (7) Storage temperature range, Tstg: -65 to 150°C.

Features

SN75150P features: (1) Meets or Exceeds the Requirement of TIA/EIA-232-F and ITU Recommendation V.28; (2) Withstands Sustained Output Short Circuit to Any Low-Impedance Voltage Between -25V and 25V; (3) 2-μS Maximum Transition Time Through the 3Vto -3V transition region under full 2500-pF Load; (4) Inputs Compatible With Most TTL Families; (5) Common Strobe Input; (6) Inverting Output; (7) Slew Rate Can Be Controlled With an External Capacitor at the Output; (8) Standard Supply Voltages: ±12V.

Diagrams

SN75150P Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

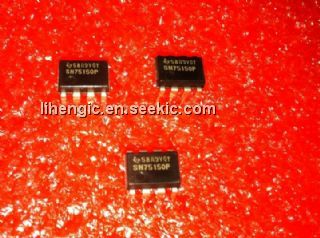

SN75150P
SN75150P
Texas Instruments
Buffers & Line Drivers Dual Line Driver/LIN
Data Sheet
0-1: $0.83
1-25: $0.66
25-100: $0.58
100-250: $0.45
SN75150PE4
SN75150PE4
Texas Instruments
Bus Transmitters DUAL LINE DRIVER
Data Sheet
0-1: $0.72
1-25: $0.60
25-100: $0.48
100-250: $0.48
