Product Summary
The AD536ASD is a complete monolithic integrated circuit which performs true rms-to-dc conversion. The AD536ASD offers performance which is comparable or superior to that of hybrid or modular units costing much more. The AD536ASD directly computes the true rms value of any complex input waveform containing ac and dc components.
Parametrics
AD536ASD absolute maximum ratings: (1)Supply Voltage: Dual Supply: ±18 V, Single Supply:+36 V; (2)Internal Power Dissipation:500 mW; (3)Maximum Input Voltage:±25 V Peak; (4)Buffer Maximum Input Voltage:±VS; (5)Maximum Input Voltage:±25 V Peak; (6)Storage Temperature Range:–55℃ to +150℃; (7)Operating Temperature Range:–55℃ to +125℃; (8)Lead Temperature Range(Soldering 60 sec):+300℃; (9)ESD Rating:1000 V.
Features
AD536ASD features: (1)True RMS-to-DC Conversion; (2)Wide Response Capability: Computes RMS of AC and DC Signals, 450 kHz Bandwidth: V rms > 100 mV, 2 MHz Bandwidth: V rms > 1 V, Signal Crest Factor of 7 for 1% Error; (3)dB Output with 60 dB Range; (4)Low Power: 1.2 mA Quiescent Current; (5)Single or Dual Supply Operation; (6)Monolithic Integrated Circuit; (7)–55℃ to +125℃ Operation.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

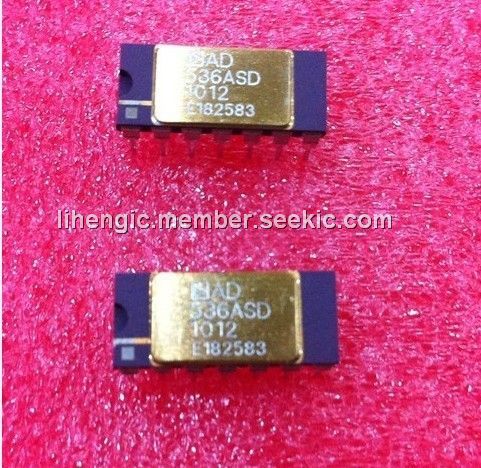

AD536ASD |
IC TRUE RMS/DC CONV 14-CDIP |
Data Sheet |
|
|
||||||||||||||||||||||
