Product Summary

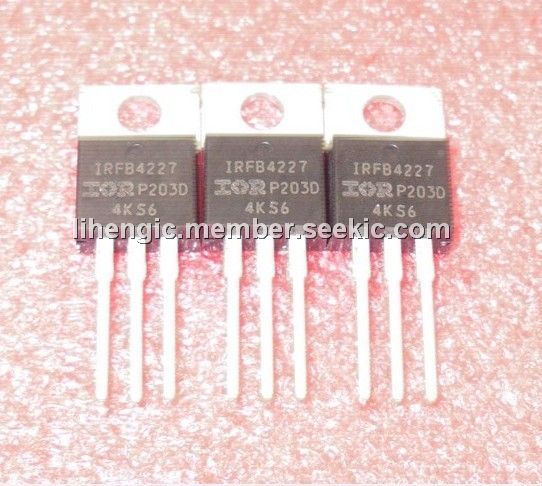

The IRFB4227 is a pdp switch,which has High Repetitive Peak Current Capability for Reliable Operation.It is Repetitive Avalanche Capability for Robustness and Reliability. The IRFB4227 utilizes the latest processing techniques to achieve low on-resistance per silicon area and low epulse rating.

Parametrics

IRFB4227 absolute maximum ratings: (1)Gate-to-Source Voltage: ±30 V; (2)Continuous Drain Current, VGS @ 10V: 65 A; (3)Continuous Drain Current, VGS @ 10V: 46 A; (4)Pulsed Drain Current: 260 A; (5)Repetitive Peak Current: 130 A; (6)Power Dissipation(PD @TC = 25℃): 330 W; (7)Power Dissipation(PD @TC = 100℃): 190W; (8)Linear Derating Factor: 2.2 W/℃; (9)Operating Junction and Storage Temperature Range:-40℃ to + 175℃; (10)Soldering Temperature for 10 seconds: 300℃.

Features

IRFB4227 features: (1)Advanced Process Technology; (2)Key Parameters Optimized for PDP Sustain, Energy Recovery and Pass Switch Applications; (3)Low EPULSE Rating to Reduce Power Dissipation in PDP Sustain, Energy Recovery and Pass Switch Applications; (4)Low QG for Fast Response; (5)High Repetitive Peak Current Capability for Reliable Operation; (6)Short Fall & Rise Times for Fast Switching; (7)175℃ Operating Junction Temperature for Improved Ruggedness; (8)Repetitive Avalanche Capability for Robustness and Reliability.

Diagrams

IRFB4227 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRFB4227PBF
IRFB4227PBF

International Rectifier

MOSFET MOSFT 200V 65A 26mOhm 70nC Qg

Data Sheet

0-1: $2.28
1-25: $1.55
25-100: $1.16
100-250: $1.11
