Product Summary

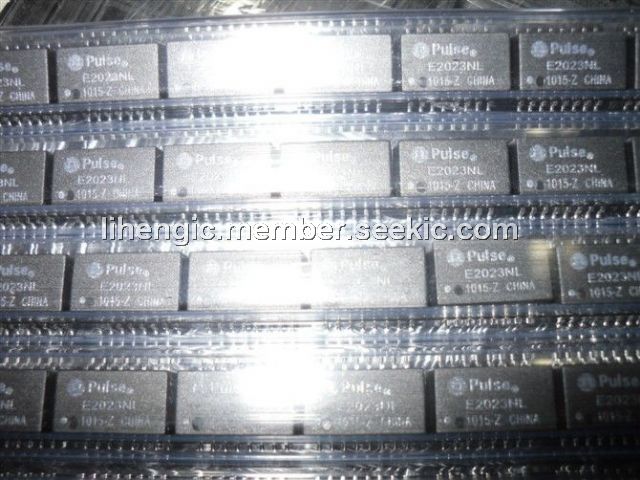

The E2023NL is isolation transformers for 10BASE-T. It is also used for adapter cards, MAUs, hubs,and motherboard.

Parametrics

Characteristics: (1)Turns Ratio(卤5%), Transmit: 1CT: 2.5CT; (2)Turns Ratio(卤5%), Receive: 1CT: 1CT; (3)Primary Pins: 6-8/1-3; (4)Sine Wave Inductance OCL (渭H MIN): 200; (5)Interwinding e Capacitance Cww (pF MAX): 15; (6)Leakage Inductance (渭H MAX): 0.5; (7)DCR (W MAX): 0.4; (8)Hipot (Vrms): 2000.

Features

Features: (1)Peak solder temperature ratings per table 5-2 in IPC/JEDEC J-STD-020; (2)Meets IEEE 802.3 specification; (3)Available with common mode chokes for EMI suppression; (4)Through hole, auto-insertable, 16-pin DIP package.

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012682308608.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E2023NL
E2023NL

Pulse

Transformers Audio & Signal 16P SMD ISOLATION

Data Sheet

0-1: $2.53
1-10: $2.10
10-100: $1.73
100-500: $1.28
E2023NLT
E2023NLT

Pulse

Transformers Audio & Signal 16P SMD ISOLATION

Data Sheet

0-380: $1.99
380-500: $1.78
500-850: $1.78
850-1000: $1.65
