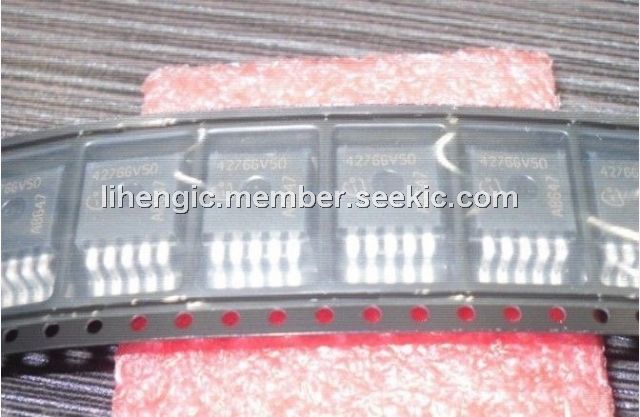

Product Summary

The 4276GV50 is a low-drop voltage regulator in a TO package. The IC regulates an input voltage up to 40 Vto VQ,nom = 5.0 V(V50), 8.5 V (V85), 10 V (V10) and adjustable voltage(V). The maximum output current is 400 mA. The 4276GV50 can be switched off via the inhibit input, which causes the current consumption to drop below 10 uA. The 4276GV50 is short-circuitproof and includes temperature protection which turns off the device at overtemperature.

Parametrics

4276GV50 absolute maximum ratings: (1)input voltage:-42V to 45V; (2)inhibit IMH voltage:-42V to 45V; (3)voltage adjust input VA voltage:-0.3V to 10V; (4)output voltage:-1.0V to 40V; (5)ground GND current:100mA; (6)junction temperature:-40 to 150℃; (7)storage temperature:-50 to 150℃.

Features

4276GV50 features: (1)5 V, 8.5 V, 10 V or variable output voltage; (2)Output voltage tolerance ≤±4%; (3)400 mA current capability; (4)Low-drop voltage; (5)Inhibit input; (6)Very low current consumption; (7)Short-circuit-proof; (8)Reverse polarity proof; (9)Suitable for use in automotive electronics.

Diagrams

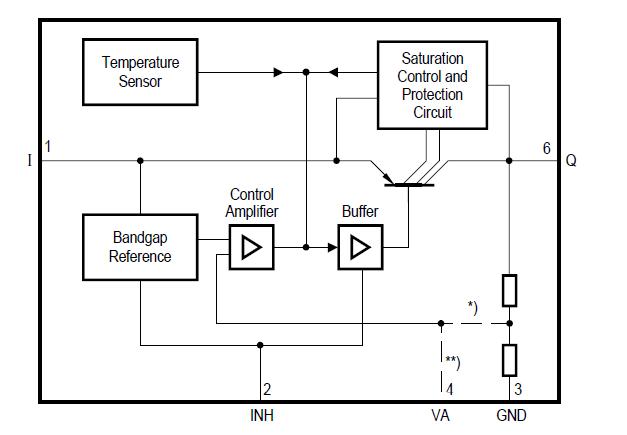

4276GV50 block diagram
