Product Summary

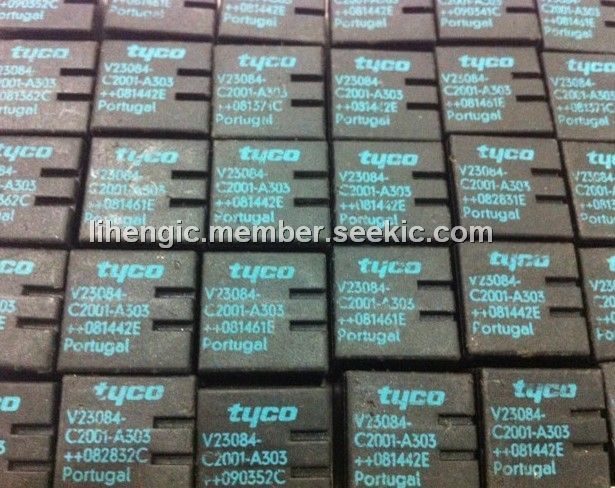

The V23084-C2001-A303 is a Double Mini Relay DMR which is a PCB Double Relay.

Parametrics

V23084-C2001-A303 absolute maximum ratings: (1)Coil Voltage: 12 V; (2)Coil Resistance: 255 Ohms; (3)Coil Current: 40 A; (4)Coil voltage range: -40℃ to +85℃; (5)Rated coil voltage: 12VDC.

Features

V23084-C2001-A303 feature: (1)Typical applications: Car alarm, door control, door lock, immobilizer, seat control, sun roof, window lifter, wiper control; (2)Electrical endurance at cyclic temperature -40/+23/+85℃ and 13.5VDC, both systems AgNi0.15, motor reverse blocked.

Diagrams

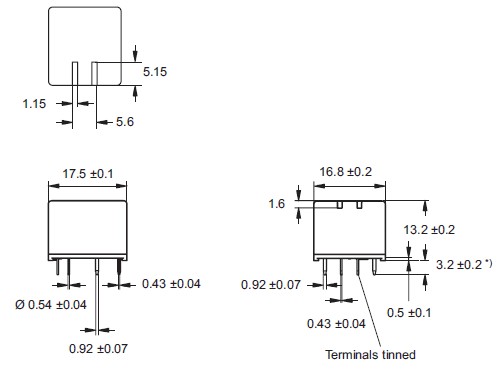

V23084-C2001-A303 package dimensions
