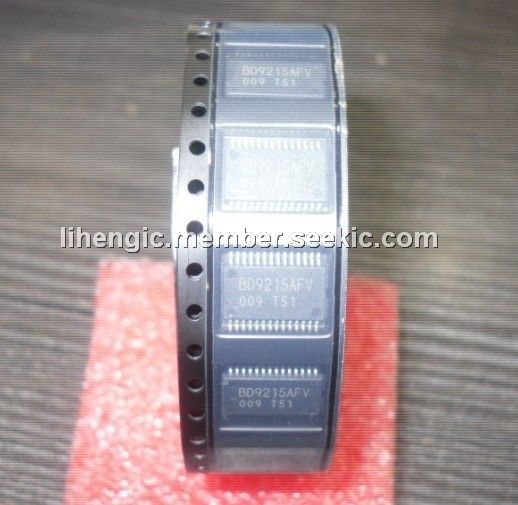

Product Summary

The BD9215AFV is a DC-AC Inverter Control IC.

Parametrics

BD9215AFV absolute maximum ratings: (1)Supply Voltage VCC: 36 V; (2)BST pin BST: 40 V; (3)SW pin SW: 36 V; (4)BST-SW voltage difference BST-SW: 15 V; (5)Operating Temperature Range Topr: -40 to +85 ℃; (6)Storage Temperature Range Tstg: -55 to +150 ℃; (7)Maximum Junction Temperature Tjmax: +150 ℃; (8)Power Dissipation Pd: 1062 mW.

Features

BD9215AFV features: (1)36V High voltage process; (2)1ch control with Full-Bridge; (3)Lamp current and voltage sense feed back control; (4)Sequencing easily achieved with Soft Start Control; (5)Short circuit protection with Timer Latch; (6)Under Voltage Lock Out; (7)Mode-selectable the operating or stand-by mode by stand-by pin; (8)For master IC, Synchronous operating with slave IC; (9)BURST mode controlled by PWM and DC input; (10)Output liner Control by external DC voltage.

Diagrams

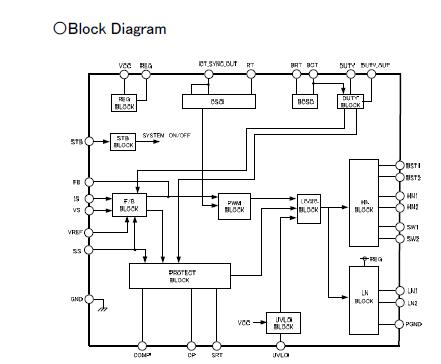

BD9215AFV block diagram
