Product Summary

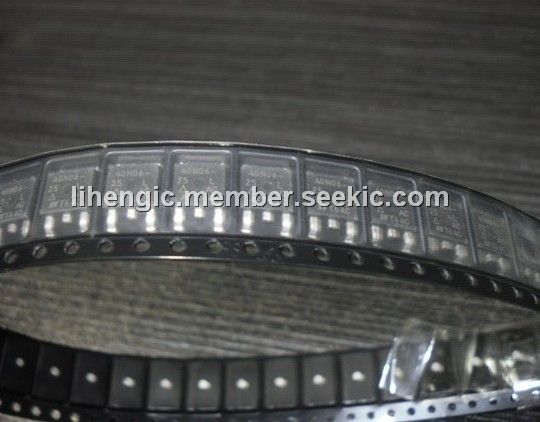

The 40N06-25L is an N-Channel 60-V (D-S), 175 Degrees Celcious MOSFET.
Parametrics
40N06-25L absolute maximum ratings: (1)drain-source voltage:60V; (2)gate-source voltage:±20V; (3)continuous drain current:40 or 25A; (4)pulsed drain current:100A; (5)avalanche current:40A; (6)repetitive avalanche energy:80mJ; (7)operating junction and storage temperature range:-55 to 175℃.
Features
40N06-25L features: (1)V(BR)DSS:60V; (2)rDS(on):0.022 @ VGS = 10 V, 0.025 @ VGS = 4.5 V; (3)ID:40A.
Diagrams
