Product Summary

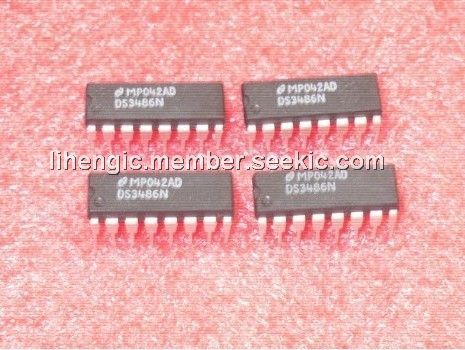

The DS3486N is a Line Receiver. The receiver features four independent receivers which comply with EIA Standards for the electrical characteristics of balanced/unbalanced voltage digital interface circuits. The Receiver output is 74LS compatible structures which is forced to a high impedance state when the appropriate output control pin reaches a logic zero condition. The DS3486N buffers each output control pin to assure minimum loading for either logic one or logic zero inputs. In addition, the DS3486N has internal hysteresis circuitry to improve noise margin and discourage output instability for slowly changing input waveforms.

Parametrics

DS3486N absolute maximum ratings: (1)Power Supply Voltage, VCC: 8V; (2)Input Common-Mode Voltage,VICM: ±25V; (3)Input Differential Voltage, VID: ±25V; (4)TRI-STATE Control Input Voltage, VI: 8V; (5)Output Sink Current, IO: 50 mA; (6)Storage Temperature, TSTG: -65℃ to +150℃; (7)Maximum Power Dissipation (Note 1) at 25℃ Molded Dip Package: 1362 mW.

Features

DS3486N features: (1)Four independent receivers; (2)TRI-STATE outputs; (3)Internal hysteresis .140 mV (typ); (4)Fast propagation times .19 ns (typ); (5)TTL compatible outputs; (6)5V supply; (7)Pin compatible and interchangeable with MC3486.

Diagrams

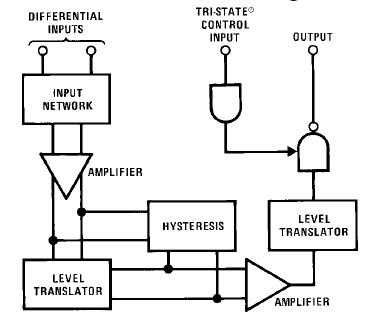

DS3486N block diagram
