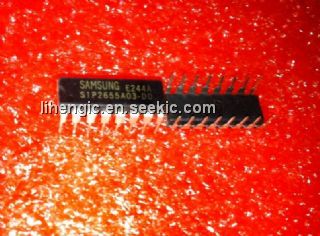

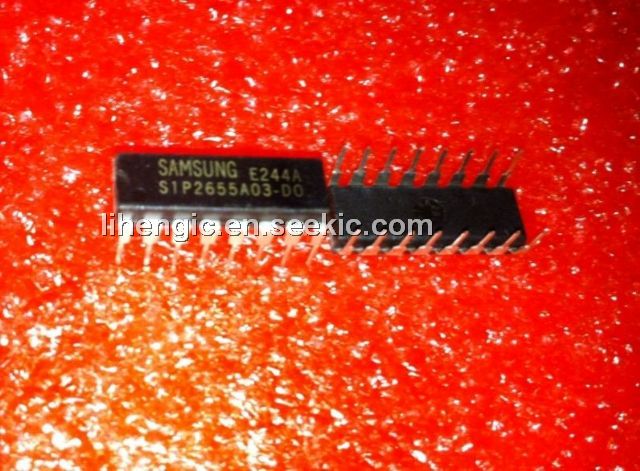

Product Summary
The S1P2655A03-D0 is comprised of saven high voltage, high current NPN darlington transistors arrays with common emitter, open collector outputs. TheS1P2655A03-D0 has a series base resistor to each darlington pair, and thus allows operation directly with TTL or CMOS operating at supply voltages of 5V. Applications of the S1P2655A03-D0 include: Relay driver, DC motor driver, Solenoids driver, LED display driver, Filament lamp driver, High power buffer and Thermal print head driver.
Parametrics
S1P2655A03-D0 absolute maximum ratings: (1) Output Voltage VO: 50V; (2) Input Voltage VIN: 30V; (3) Continuous Collector Current IC: 500mA; (4) Continuous Input Current IIN: 25mA; (5) Power Dissipation PD: 1.0W; (6) Operating Temperature Topr: - 20 to °C + 85°C; (7) Storage Temperature Tstg: -55°C to +150°C.

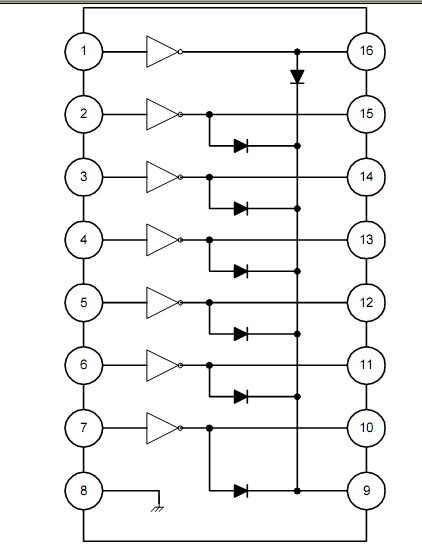

Diagrams
