Product Summary

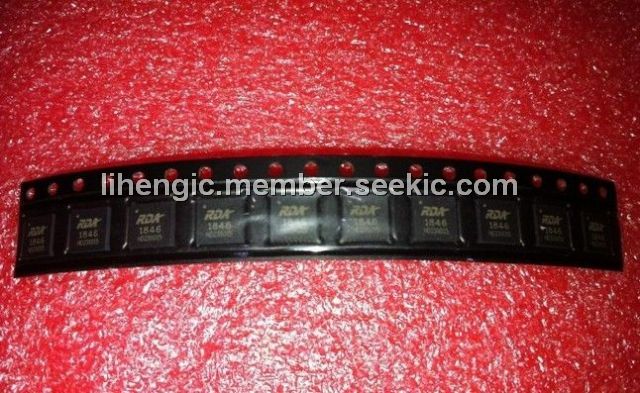

The RDA1846 is a highly integrated single-chip transceiver for Walkie Talkie applications. It totally realizes the translation from RF carrier to voice in the RX path and from voice to RF carrier in the TX path, requiring only one micro controller. The applications of the RDA1846 include Cellular handsets, Family radio services and Walkie Talkies.
Parametrics
RDA1846 absolute maximum ratings: (1)AVDD, Supply Voltage from battery or LDO: 3.3 to 4.8 V; 3.3V typ; (2)Tamb, Ambient Temperature: -25 to +85℃; 27℃ typ; (3)VL, CMOS Low Level Input/output Voltage: 0 to 0.3 V; (4)VH, CMOS High Level Input/output Voltage: 2.7 to 3 V; (5)VTH, CMOS Threshold Voltage: 1.5V typ.
Features
RDA1846 features: (1)CMOS single-chip fully-integrated transceiver; (2)Fully integrated frequency synthesizer and VCO; (3)Support worldwide frequency band: 134MHz ~ 174MHz; 400MHz ~ 500MHz; (4)12.5KHz, 25KHz channels; (5)Support multiple XTAL clocks: 12.8/25.6Mhz; 13/26Mhz; (6)Digital auto frequency control (AFC); (7)Digital auto gain control (AGC); (8)Selectable pre/de-emphasis ; (9)Received signal strength indicator (RSSI); (10)VOX and SQ; (11)Build-in CTCSS/CDCSS generator and judgment: CTCSS with 120/180 /240 degree phase shift; 23/24 bit programmable DCS code; (12)DTMF and programmable in-band dual tone; (13)Programmable in-band single tone transmitter; (14)Auto RX/TX/SLEEP state switching; (15)8 GPIOs; (16)3-wire/4-wire/I2C serial control bus interface; (17)On chip 8 dBm PA; (18)Analog and digital volume control; (19)Directly support 32? resistance loading; (20)3.3 to 4.8 V supply voltage with Integrated LDO; (21)5X5 mm 32 pin QFN package.
