Product Summary
The RLXA2510DR is an Analog Interpolator. The monolithic CMOS integrated circuit converts the input sine and cosine signals, as well as the analog reference signal into digital signals with adjustable subdividing factor.
Parametrics
RLXA2510DR absolute maximum ratings: (1)Supply voltage:- 0,3 V to 12 V; (2)Power dissipation: 0.1 W; (3)Operating temp. range:- 25℃ to 100℃; (4)Storage temp. range: - 55℃ to 150℃; (5)Soldering temp.(Vapor phase reflow for 30 s): 235℃.
Features
RLXA2510DR features: (1)Interpolation by 10, 5, 2 or 1, selectable; (2)Direct coupling of photodiode array; (3)Single supply; (4)Low power; (5)High speed; (6)Extended temperature range; (7)SMD package SO16W.

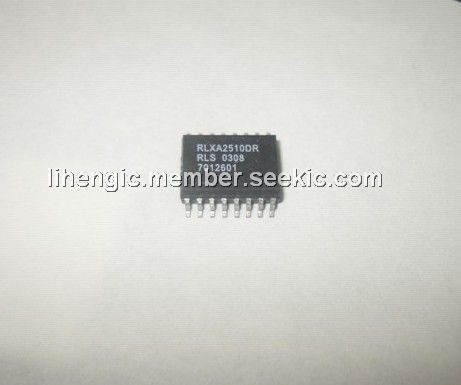

Diagrams
 |
 RLXA2510 |
Other |
|
Data Sheet |
Negotiable |
|
||||
