Product Summary
The LTC1347CG is the subpackage of LTC1347. The following is about the LTC1347. The LTC1347 is a kind of 3-driver/5-receiver RS232 transceiver with very low supply current. It is fully compliant with all data rate and overvoltage RS232 specifications. The typical applications include notebook computers and palmtop computers.
Parametrics
Absolute maximum ratings:(1)Supply Voltage (VCC): 6V; (2)Input Voltage Driver: – 0.3V to VCC + 0.3V; (3)Receiver: – 25V to 25V; (4)On/Off Pin: – 0.3V to VCC + 0.3V; (5)Output Voltage Driver: – 25V to 25V; (6)Receiver: – 0.3V to VCC + 0.3V; (7)Short-Circuit Duration V+: 30 sec; (8)Short-Circuit Duration V–: 30 sec; (9)Driver Output: Indefinite; (10)Receiver Output: Indefinite; (11)Operating Temperature Range: 0°C to 70°C; (12)Storage Temperature Range: – 65°C to 150°C; (13)Lead Temperature (Soldering, 10 sec): 300°C.
Features
Features: (1)Low Supply Current: 300mA; (2)Five Receivers Kept Alive iShutdown; (3)ESD ProtectioOver ±10kV; (4)Operates from a Single 5V Supply; (5)Uses Small Capacitors: 0.1mF; (6)Operates to 120kBaud; (7)Three-State Outputs Are High Impedance WheOff; (8)Output Overvoltage Does Not Force Current Back into Supplies; (9)RS232 I/O Lines CaBe Forced to ±25V Without Damage; (10)PiCompatible with LT1137 and LT1237; (11)Flowthrough Architecture.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

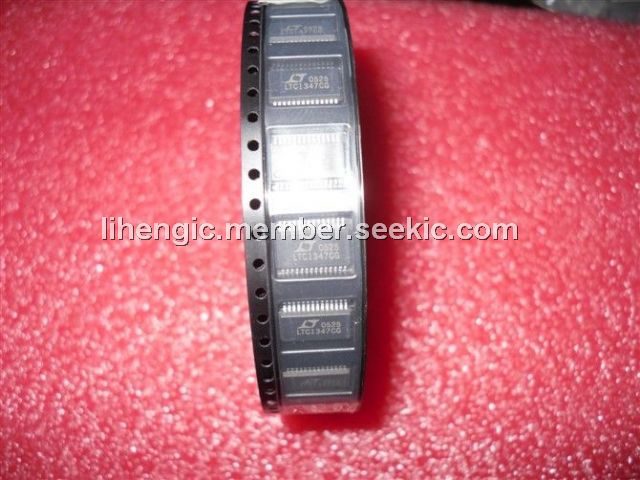

 LTC1347CG |
|
IC TXRX 5V RS232 LOW PWR 28-SSOP |
Data Sheet |
|
|
||||||
|
LTC1347CG#PBF |
|
IC TXRX 5V RS232 LOW PWR 28-SSOP |
Data Sheet |
|
|
||||||
|
LTC1347CG#TR |
|
IC TXRX RS232 5V LOW PWR 28SSOP |
Data Sheet |
|
|
||||||
|
LTC1347CG#TRPBF |
|
IC TXRX 5V RS232 LOW PWR 28-SSOP |
Data Sheet |
|
|
||||||
