Product Summary
The NJM2575F1 is a Low Voltage Video Amplifier contained LPF circuit, 75Ω river to connect TV monitor directly.The NJM2575F1 is with power save function is suitable for low power design. The NJM2575F1 is suitable for down.
Parametrics
NJM2575F1 absolute maximum ratings: (1) Supply Voltage V+: 7.0V; (2) Power Dissipation PD: 200mW; (3) Operating Temperature Range Topr: -40 to +85°C; (4) Storage Temperature Range Tstg: -40 to +125°C.
Features
NJM2575F1 features: (1) Operating Voltage: 2.8V to 5.5V; (2) Input Composite Video Signal: 1.0Vpp; (3) Internal Low Pass Filter; (4) Operating Current: 7.0mA typ.at Vcc=3.0V; (5) Operating Current Power Save Mode 60uA typ.at Vcc=3.0V; (6) Bipolar Technology; (7) Package Outline.

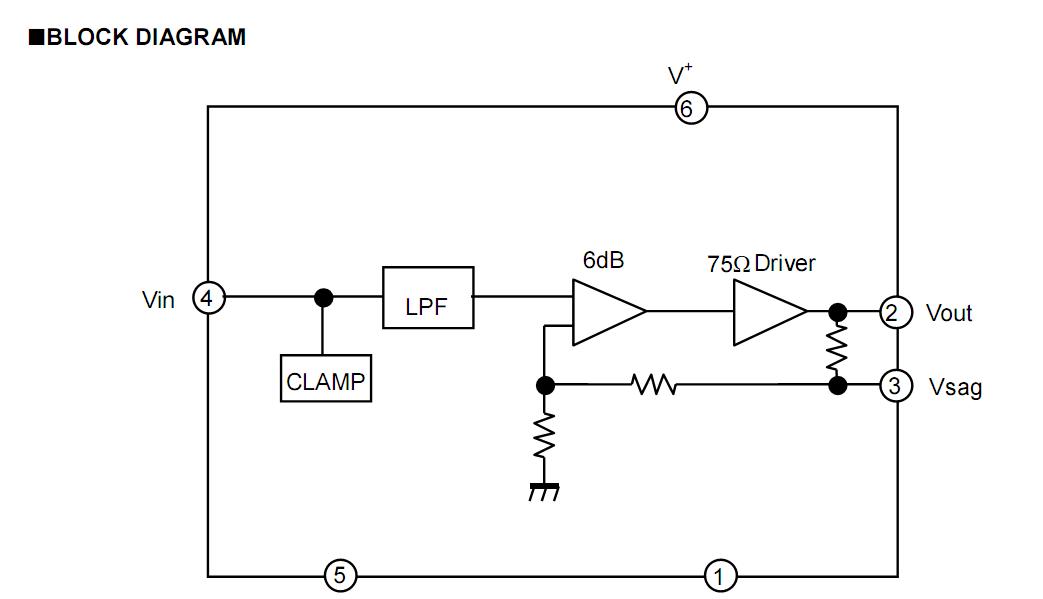

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM2575F1-TE1 |
NJR |
Video ICs Low Voltage w/ LPF |
Data Sheet |
|
|
||||||
|
NJM2575F1-TE2 |
NJR |
Video ICs Low Voltage w/ LPF |
Data Sheet |
|
|
||||||
