Product Summary
The MAX233CPP driver/receiver is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX233CPP is especially useful in battery-powered system low-power shutdown mode reduce power dissipation to less than 5μW. Applications of the MAX233CPP include: Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems
and Multidrop RS-232 Networks.
Parametrics
MAX233CPP absolute mainxum ratings: (1) Supply Voltage (VCC) : -0.3V to +6V; (2) V+: (VCC -0.3V) ; (3) V-: +0.3V to +14V; (4) TIN: -0.3V to (VCC -0.3V) ; (5) RIN: ± 30V; (6) TOUT: ±15V; (7) ROU: -0.3V to (VCC +0.3V) ; (8) OUT Driver/Receiver Output Short Circuited to GND: Continuous; (9) Continuous Power Dissipation (TA=+70°C) , 6-Pin Plastic DIP (derate 10.53mW/°C,C above +70°C) : 843mW; (10) Storage Temperature Range: -65°C to +160°C; (11) Lead Temperature (soldering, 10s) : +300°C.
Features
MAX233CPP features: (1) For Low-Voltage, Integrated ESD Applications +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1PAF External Capacitors (MAX3246E Available in a UCSP Package) ; (2) For Low-Cost Applications Single RS-232 Transceiver with AutoShutdown.

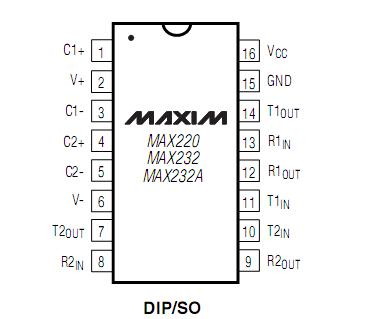

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX233CPP |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
|||||||||||||
MAX233CPP+G36 |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
