Product Summary
The KS8993M is a highly integrated Layer 2 managed switch, is designed for low port count, cost-sensitive 10/100 Mbps switch systems. The KS8993M offers an extensive feature set that includes tag/port-based VLAN, quality of service (QoS) priority, management, management information base (MIB) counters, MII/SNI, and CPU control/data interfaces to effectively address both current and emerging Fast Ethernet applications. Applications of the include:Universal Solutions , Upgradeable Solutions and Industrial Solutions.
Parametrics
KS8993M absolute maximum ratings: (1) Supply Storage: -55°C to 150°C; (2) Supply Voltage, VDDA, VDDAP, VDDC: -0.5V to 24V, VDDATX, VDDARX, VDDIO: -0.5V to 4.0V; (3) Input Voltage (all inputs) : -0.5V to 4.0V; (4) Output Voltage (all outputs: -0.5V to 4.0V; (5) Storage Temperature (Ts) : -55°C to 150°C.
Features
KS8993M features: (1) Proven Integrated 3-Port 10/100 Ethernet Switch; (2) Comprehensive Configuration Register Access; (3) QoS/CoS Packet Prioritization Support; (4) Double-tagging support; (5) C MIB counters for fully compliant statistic gathering, 34 MIB counters per port; (6) Low Power Dissipation: <0.8 Watts (includes PHY transmit drivers) .

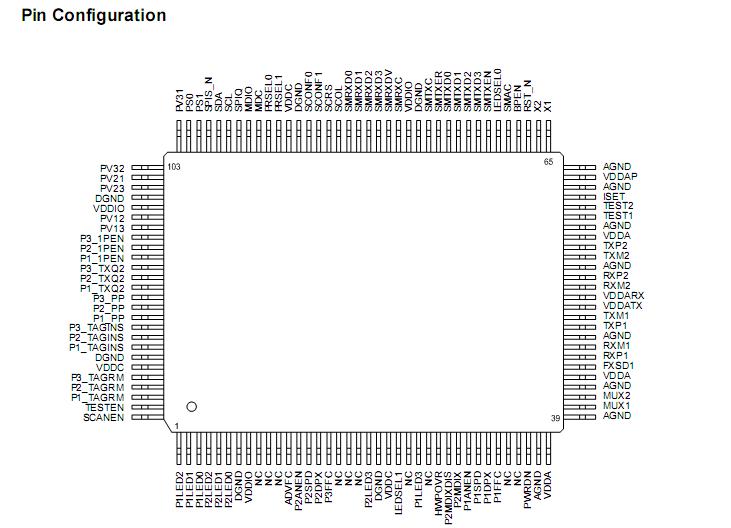

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

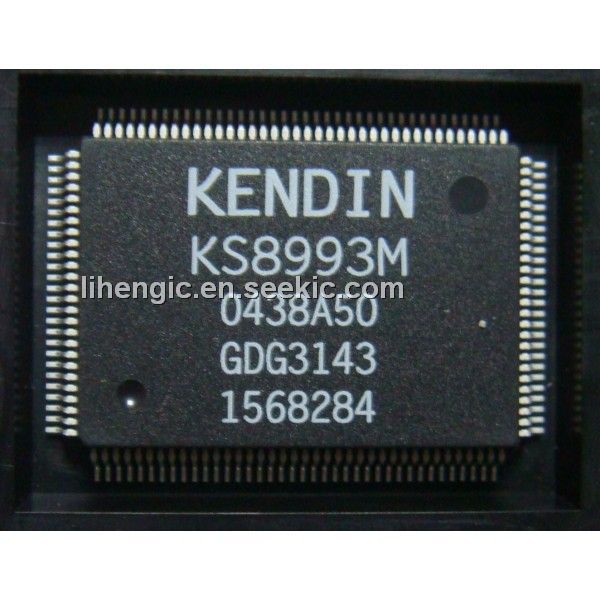

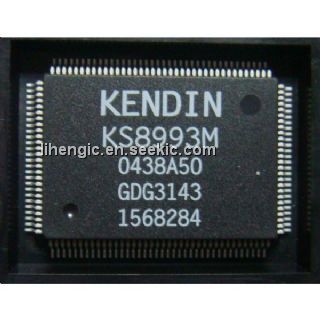

 KS8993M |
|
IC SWITCH 10/100 3PORT 128PQFP |
Data Sheet |
Negotiable |
|
||||
|
KS8993MA5 |
|
IC SWITCH 3-PORT 10/100 128-PQFP |
Data Sheet |
Negotiable |
|
||||
|
KS8993MI |
|
IC SWITCH 10/100 3PORT 128PQFP |
Data Sheet |
Negotiable |
|
||||
|
KS8993ML |
|
IC SWITCH 10/100 3PORT 128PQFP |
Data Sheet |
Negotiable |
|
||||
 |
KS8993M-EVAL |
|
BOARD EVAL EXPERIMENT KS8993M |
Data Sheet |
Negotiable |
|
||||
|
KS8993ML-EVAL |
|
BOARD EVAL FOR KS8993ML |
Data Sheet |
Negotiable |
|
||||
