The HIP6301CB-T is a multi-phase PWM control IC together with its companion gate drivers. The HIP6301CB-T provides a precision voltage regulation system for advanced microprocessors. Multiphase power conversion is a marked departure from earlier single phase converter configurations previously employed to satisfy the ever increasing current demands of modern microprocessors.
Parametrics
HIP6301CB-T absolute maximum ratings: (1)Supply Voltage, VCC: +7V; (2)Input, Output, or I/O Voltage: GND -0.3V to VCC + 0.3V; (3)ESD Classification: 1.5KV.
Features
HIP6301CB-T features: (1)Multi-Phase Power Conversion; (2)Precision Channel Current Sharing: Loss Less Current Sampling - Uses rDS(ON); (3)Precision CORE Voltage Regulation: ±1% System Accuracy Over Temperature; (4)Microprocessor Voltage Identification Input: 5-Bit VID Input, 1.100V to 1.850V in 25mV Steps, Programmable "Droop" Voltage; (5)Fast Transient Recovery Time; (6)Over Current Protection; (7)Automatic Selection of 2, 3, or 4 Phase Operation.

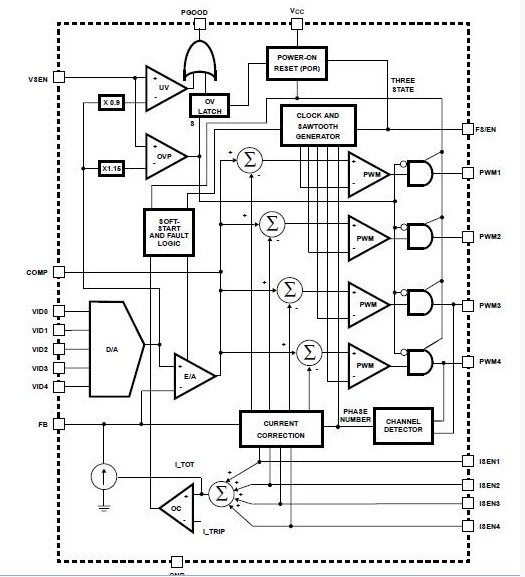

Diagrams
