Product Summary
The AT83C230K203-RATUM is a CardMan Smart@Link which is ready to use precertified smart card reader interface, that can be implemented into USB hosts. The AT83C230K203-RATUM facilitates hardware integrators by reducing time-to-market and offers a unique opportunity to quickly and easily include smart card reader functionality in systems like PCs, Notebooks, Keyboards, Smart Card based Dongles, Monitors, Mice, PDAs, Thin Clients, Biometric devices etc. With its high performance Smart card Interface, the AT83C230K203-RATUM supports smartcard technology of the future.
Parametrics
AT83C230K203-RATUM absolute maximum ratings: (1)Ambiant Temperature Under Bias: -25℃ to 85℃; (2)Storage Temperature: -65℃ to + 150℃; (3)Voltage on VCC to VSS: -0.5 V to + 6.0V; (4)Voltage on Any Pin to VSS: -0.5 V to VCC + 0.5 V.
Features
AT83C230K203-RATUM features: (1)Transmission Speed: USB: 12 MBit/sec; (2)Smart Card Interface Compliant with ISO 7816 and EMV 2000; (3)EMV 2000 (Europay, Mastercard, Visa) Certified; (4)Fast and Easy Certification Process; (5)Customer Specific USB-descriptors; (6)High Performance Smart Card Interface; (7)Smart Card Movement Detection with Auto Power-off.

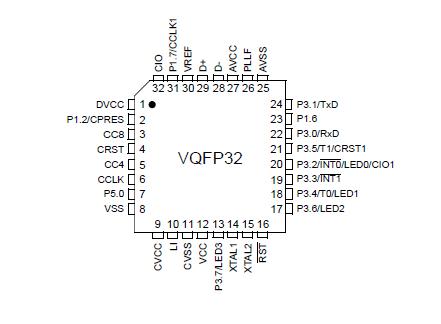

Diagrams
 |
