Product Summary

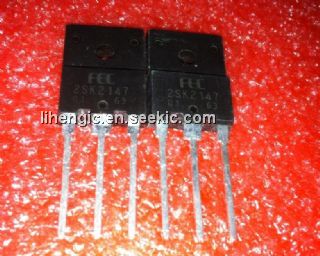

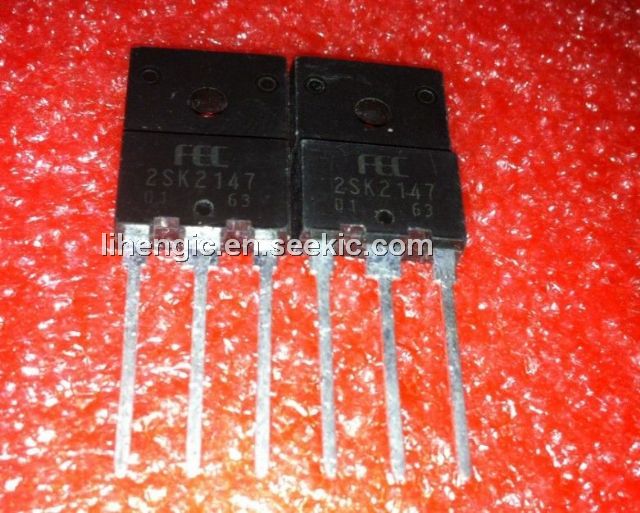

The 2SK2147 is an N-channel silicon power mosfet. Applications of the 2SK2147 include: switching regulators, UPS, DC-DC converters and general purpose power amplifier.
Parametrics
2SK2147 absolute maximum ratings: (1) drain-source VDS: 900V; (2) drain-gate voltage (RGS=20KΩ) VDGR: 900V; (3) continuous drain current ID: 6A; (4) pulsed drain current ID (puls) : 18A; (5) gate-source voltage VGS: ±30V; (6) Max. power dissipation PD: 80W; (7) opertating and storage temperature range Tstg: -55 to +150°C.
Features
2SK2147 features: (1) high speed switching; (2) low on-resistance; (3) no secondary breakdown; (4) low driving power; (5) high voltage; (5) VGS=±30V guarantee.

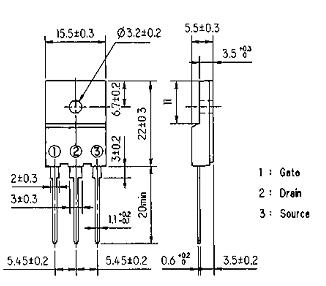

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK2147-01R |
Other |
|
Data Sheet |
Negotiable |
|
||||
