Product Summary

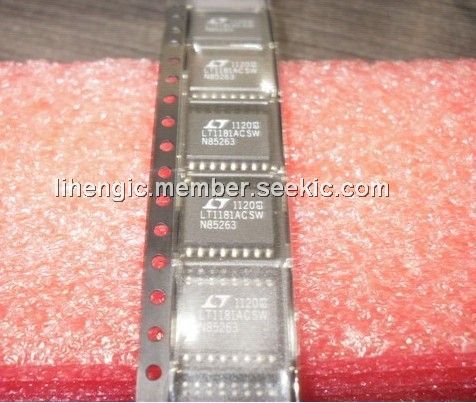

The LT1181ACSW is a dual RS232 driver/receiver with integral charge pump to generate RS232 voltage levels from a single 5V supply. The circuits feature rugged bipolar design to provide operating fault tolerance and ESD protection unmatched by competing CMOS designs. Using only 0.1mF external capacitors, the circuits consume only 40mW of power, and can operate to120k baud even while driving heavy capacitive loads. The LT1181ACSW is fully compliant with EIA RS232 standards. It is available in 16-pin DIP and SO packages. The applications of LT1181ACSW include portable computers,battery-powered systems,power supply generator,terminals and modems.
Parametrics
LT1181ACSW absolute maximum ratings: (1)Supply Voltage (VCC): 6V; (2)V+ : 13.2V; (3)V–: –13.2V; (4)Input Voltage: Driver: V– to V+; Receiver: – 30V to 30V; ON/OFF: –0.3V to 12V; (5)Output Voltage: Driver: V+ – 30V to V – + 30V; Receiver: – 0.3V to VCC + 0.3V; (6)Short-Circuit Duration: V+ : 30 sec; V– : 30 sec; (7)Driver Output: Indefinite; (8)Receiver Output: Indefinite; (9)Operating Temperature Range: 0℃ to 70℃; (10)Storage Temperature Range: – 65℃ to 150℃; (11)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1181ACSW fatures: (1)ESD Protectioover ±10kV; (2)Uses Small Capacitors: 0.1mF; (3)120kBaud Operatiofor RL = 3k, CL = 2500pF; (4)250kBaud Operatiofor RL = 3k, CL = 1000pF; (5)Outputs Withstand ±30V Without Damage; (6)CMOS Comparable Low Power: 40mW; (7)Operates from a Single 5V Supply; (8)Rugged Bipolar Design; (9)Outputs Assume a High Impedance State WheOff or Powered Down; (10)Meets All RS232 Specifications; (11)Available With or Without Shutdown; (12)Absolutely No Latch-up; (13)Available iSO Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1181ACSW |
|
IC DRVR/RCVR RS232 5V DUAL16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1181ACSW#PBF |
|
IC DRVR/RCVR RS232 5V DUAL16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1181ACSW#TR |
|
IC DRVR/RCVR RS232 5V DUAL16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1181ACSW#TRPBF |
|
IC DRVR/RCVR RS232 5V DL 16SOIC |
Data Sheet |
|
|
||||||||||
