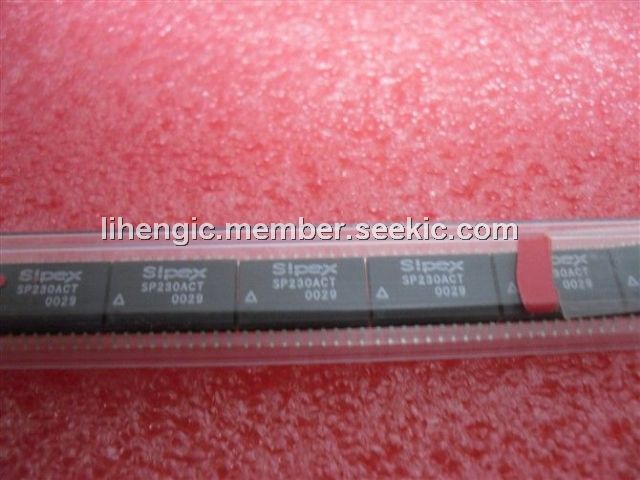

Product Summary

The SP230ACT is multi–channel RS-232 line drivers/receivers that provide a variety of configurations to fit most communication needs, especially where ±12V is not available. Some models feature a shutdown mode to conserve power in battery-powered systems. Some require no external components. All, except one model, feature a built-in charge pump voltage converter, allowing them to operate from a single +5V power supply. All drivers and receivers meet all EIA RS-232D and CCITT V.28 requirements. The Series is available in plastic DIP and SOIC packages.

Parametrics

Absolute maximum ratings:(1)VCC: +6V; (2)V+: (Vcc–0.3V) to +13.2V; (3)V–: 13.2V; (4)Input Voltages of TIN: –0.3 to (Vcc +0.3V); (5)Input Voltages of RIN: ±30V; (6)Output Voltages of TOUT :(V+, +0.3V) to (V–, –0.3V); (7)Output Voltages of ROUT: –0.3V to (Vcc +0.3V); (8)Short Circuit Duration of TOUT: Continuous; (9)Power Dissipation of CERDIP: 675mW(derate 9.5mW/°C above +70°C); (10)Plastic DIP: 375mW (derate 7mW/°C above +70°C) ; (11)Small Outline: 375mW(derate 7mW/°C above +70°C).

Features

Features:(1)Operates from Single +5V Power Supply; (2)Meets All RS-232D and V.28 Specifications; (3)±9V Output Swing with +5V Supply; (4)Improved Driver Output Capacity for Mouse Applications; (5)Low Power Shutdown – 1μA; (6)WakeUp Feature in Shutdown Mode; (7)3–State TTL/CMOS Receiver Outputs; (8)±30V Receiver Input Levels; (9)Low Power CMOS – 5mA Operation; (10)Wide Charge Pump Capacitor Value Range – 1-10μF.

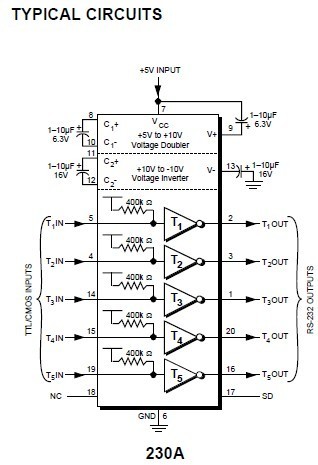

Diagrams
