Product Summary

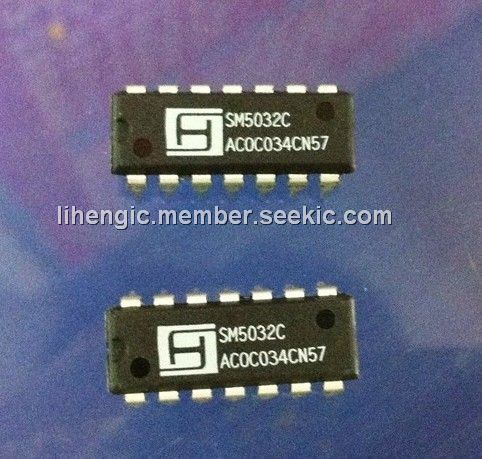

The SM5032C is an infrared remote control decoder utilizing COMOS technology, paired with SM5021 for transmitter. The remote control system is capable of controlling eight functions and CP1 to CP6 can multi-decode. There is an option for two toggle signal outputs in these data control functions. The applications of the SM5032C include: Consumer Products Remote Control, Toy Remote Control, Audio Remote Control.
Parametrics
SM5032C absolute maximum ratings: (1)Supply Voltage VDD-Vss: -0.3 to 6V; (2)Input Voltage VI: Vss - 0.3 to VDD + 0.3 V; (3)Output Voltage Vo: Vss - 0.3 to VDD + 0.3 V; (4)Maximum Power Consumption Pa: 500mW; (5)Operating Temperature Topr: -10 to 70℃; (6)Storage Temperature Tstg: -40 to 125℃.
Features
SM5032C features: (1)Wide operation voltage range, 2.4V to 6V; (2)Infrared remote control receiver; (3)Two custom code to separate products; (4)Eight control functions for continuous signal; (5)Mulit-key control outputs; (6)Two toggle signal can be optioned in outputs; (7)A single terminal type oscillator by means of RC is provided; (8)Low power consumption; (9)High noise immunity; (10)14 pin DIP or SO package.

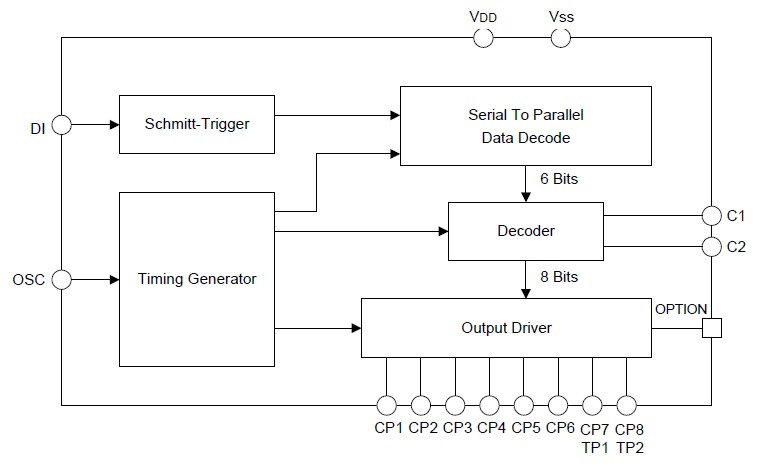

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SM5032C |
Other |
|
Data Sheet |
Negotiable |
|
||||||
