Product Summary

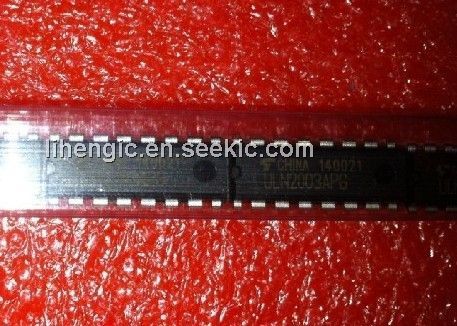

The ULN2003APG is a high voltage, high current darlington driver comprised of seven NPN darlington pairs. All units of the ULN2003APG feature integral clamp diodes for switching inductive loads. Applications of the ULN2003APG include relay, hammer, lamp and display (LED) drivers.
Parametrics
ULN2003APG absolute maximum ratings: (1) Output sustaining voltage VCE (SUS) : -0.5V to 50V; (2) Output current IOUT: 500mA/ch; (3) Input voltage VIN: -0.5 to 30V; (4) Clamp diode reverse voltage VR: 50V; (5) Clamp diode forward current IF: 500mA; (6) Power dissipation APG: 1.47W, AFWG: 1.25W; (7) Operating temperature: -40 to 85°C; (8) Storage temperature: -55 to +150°C.
Features
ULN2003APG features: (1) Output current (single output) : 500 mA max; (2) High sustaining voltage output: 50V min; (3) Output clamp diodes; (4) Inputs compatible with various types of logic; (5) Package Type-APG: DIP-16 pin; (6) Package Type-AFWG: SOL-16 pin.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ULN2003APG |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
ULN2003APG(5,M) |
Toshiba |
Transistors Darlington 7CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
ULN2003APG(O,M) |
Toshiba |
Transistors Darlington 7-ch 500mA 50V 2.7 kOhm 5V CMOS |
Data Sheet |
|
|
||||||||||||
|
ULN2003APG(SC,M) |
Toshiba |
Transistors Darlington 7CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
