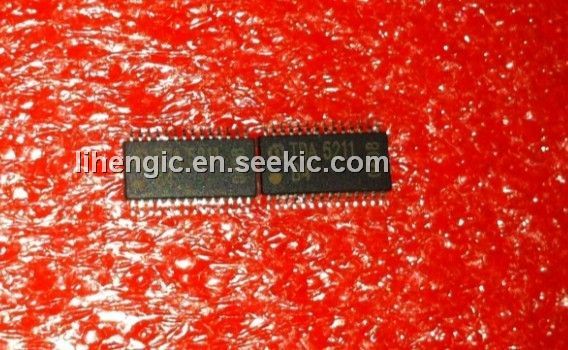

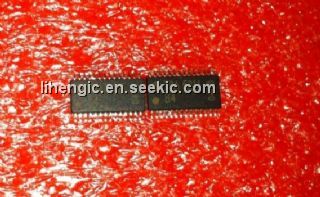

Product Summary
The TDA5211 is a very low power consumption single chip FSK/ASK Superhet-erodyne Receiver (SHR) for the frequency band 310 to 350 MHz that ispin compatible with the ASK ReceiverTDA5201. The TDA5211 offers a high level of integration and needs only a few external components. The TDA5211 contains a low noise amplifier (LNA) , a double balanced mixer, a fully integratedVCO, a PLL synthesiser, a crystal oscillator, a limiter with RSSI generator, a PLL FSK demodulator, a data filter, a data comparator (slicer) and a peak detector.
Parametrics
TDA5211 absolute maixmum ratings: (1) Supply Voltage VS: -0.3V to 5.5V; (2) Junction Temperature Tj: -40 to +150°C; (3) Storage Temperature Ts: -40 t0 +125°C; (4) Thermal Resistance RthJA: 114K/W; (5) ESD integrity, all pins excl. Pins 1,3, 6, 28: +2kV, ESD integrity Pins 1,3,6,28, VESD: +1.5kV.
Features
TDA5211 features: (1) Low supply current (Is = 5.7 mA typ. in FSK mode, Is = 5 mA typ. in ASK mode) ; (2) Supply voltage range 5V ±10%; (3) Power down mode with very low supply current (50nA typ.) ; (3) FSK and ASK demodulation capability; (4) Fully integrated VCO and PLL Synthesiser; (5) ASK sensitivity better than -110 dBm over specified temperature range (- 40 to +105°C) ; (6) Selectable frequency ranges 310-330 MHz and 330-350 MHz; (7) Limiter with RSSI generation, operating at 10.7MHz; (8) Selectable reference frequency; (9) 2nd order low pass data filter with external capacitors; (10) Data slicer with self-adjusting threshold; (11) FSK sensitivity better than -102 dBm over specified temperature range (- 40 to +105°C) .

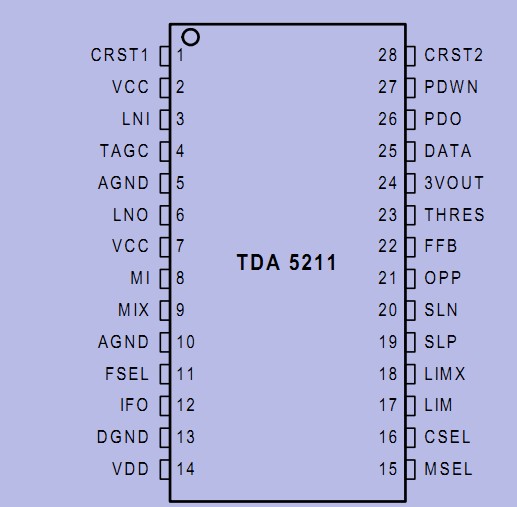

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDA5211 |
Infineon Technologies |
RF Receiver 5V 50nA FSK/ASK Receiver |
Data Sheet |
|
|
|||||||||||||
