Product Summary

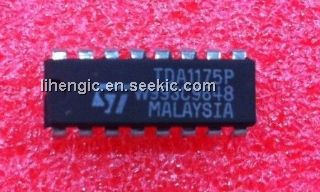

The TDA1175P is a monolithic integrated circuit in POWERDIP16 plastic package. The TDA1175P is intended for use in black and white and colour TV receivers. Low-noise makes the TDA1175P particularly suitable for use in monitors.
Parametrics
TDA1175P absolute maximum ratings: (1) Supply Voltage at Pin2 Vs: 35V; (2) Flyback Peak Voltage V6, V7: 60V; (3) Power Amplifier Input Voltage V14: +10V, -0.5V; (4) Output Peak Current (non repetitive)at t=2ms: 2A; (5) Output Peak Current at f=50Hz, t≤10μs: 2.5A; (6) Output Peak Current at f=50Hz, t＞10μs; (7) Pin 3 DC Current at V6 <V2 I3: 100mA; (8) Pin 3 Peak to Peak Flyback Current for f=50Hz, tfly≤1.5ms, I3: ±1.8A; (9) Pin10 Current I10: ±20mA; (10) Power Dissipation: at Ttab=90°C, Ptot: 4.3W, at Tamb=70°C (free air) : 1W; (11) Storage and Junction Temperature: -40 to +150°C.
Features

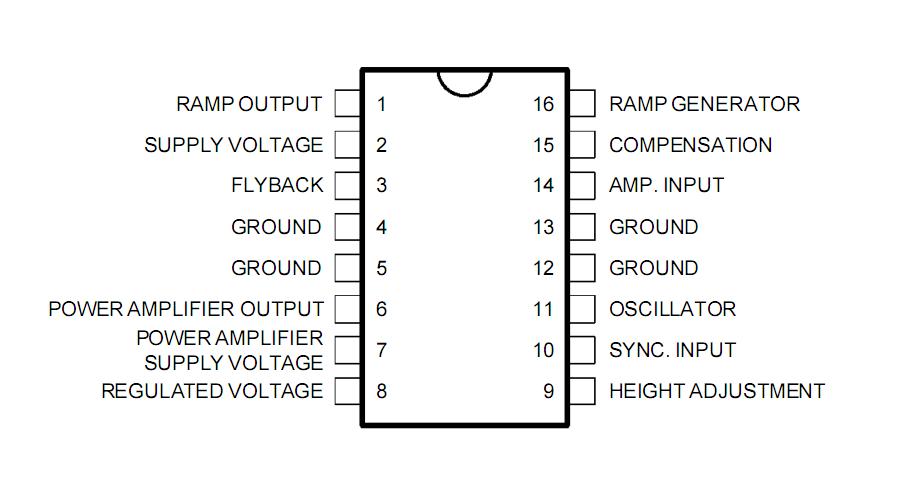

TDA1175P features: (1) complete vertical deflection system; (2) low noise; (3) suitable for high definition monitors; (4) ESD protected.
