Product Summary

The LRPS-2-980 is a Power Splitter/Combiner.

Parametrics

LRPS-2-980 absolute maximum ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)Power Input (as a splitter): 1W; (4)Internal Dissipation: 0.125W.

Features

LRPS-2-980 features:(1)low insertion loss, 0.5 dB typ; (2)high isolation, 30 dB typ.

Diagrams

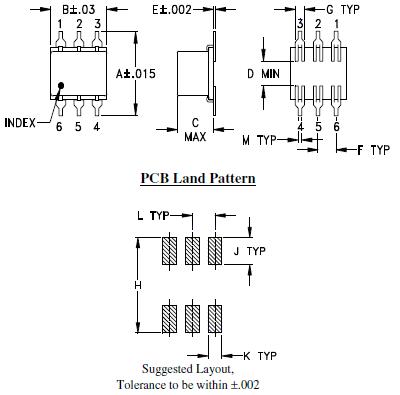

LRPS-2-980 package dimensions
