Product Summary

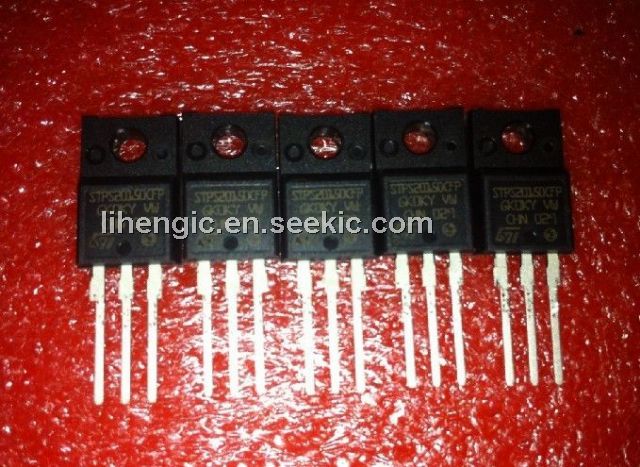

The STPS20150CFP is a high voltage power schottky rectifier. The STPS20150CFP is designed for high frequency switched mode power supplies.
Parametrics
STPS20150CFP absolute maximum ratings: (1) Repetitive peak reverse voltage VRRM: 150V; (2) RMS forward current IF (RMS) : 30A; (3) Average forward current 0.5A, IF (AV) : 10A ( TC=155°C) ; (4) Surge non repetitive forward current IFSM tp=10ms sinusoidal: 180A; (5) Repetitive peak avalanche power PARM: 6700W (tp=1μs, Tj=25°C) ; (6) Storage temperature range Tstg: -65 to +175°C; (7) Maximum operating junction temperature Tj: 175°C; (8) Critical rate of rise of reverse voltage, dV/dt: 10000V/μs.
Features
STPS20150CFP features: (1) high junction temperature capability; (2) good trade off between leakage current and forward voltage drop; (3) low leakage current; (4) avalanche capability specified.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STPS20150CFP |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 2x10 Amp 150 Volt |
Data Sheet |
|
|
||||||||||||||||||
