Product Summary

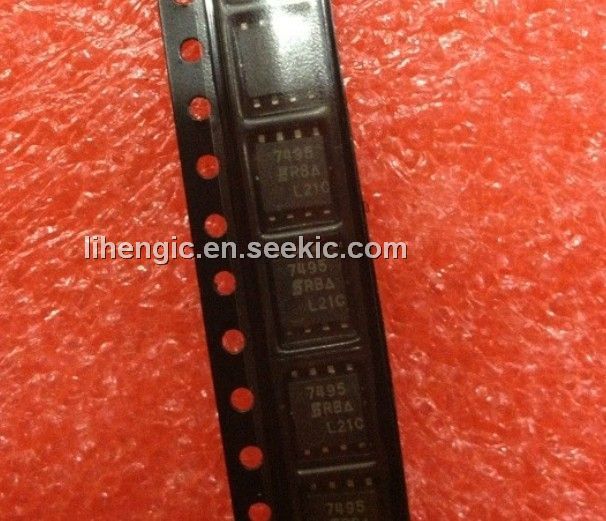

SI7495DP is a P-channel 12V (D-S) mosfet.Application of the SI7495DP includes: Load Switch.
Parametrics
SI7495DP absolute maximum ratings: (1) Drain-Source Voltage VDS: -12V; (2) Gate-Source Voltage VGS: ±8V; (3) Continuous Drain Current (TJ=150°C) , TA=25°C : -21 to -13V, TA=70°C: -17V to -10V; (4) Pulsed Drain Current IDM: -50A; (5) ontinuous Source Current (Diode Conduction) IS: -4.5V to -1.6V; (6) Maximum Power Dissipation, TA=25°C: 5 to 1.8W, TA=70°C: 1.1W; (7) Operating Junction and Storage Temperature Range: -55 to 150°C.
Features
SI7495DP features: (1) TrenchFET power mosfet; (2) New Low Thermal Resistance PowerPAK Package with Low 1.07-mm Profile.

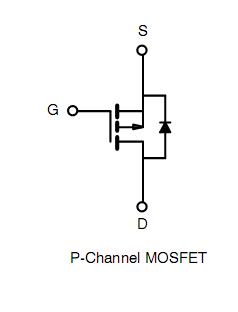

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 Si7495DP |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
SI7495DP-T1 |
Vishay/Siliconix |
MOSFET 12V 21A 1.8W |
Data Sheet |
Negotiable |
|
||||
|
SI7495DP-T1-E3 |
Vishay/Siliconix |
MOSFET 12V 21A 1.8W |
Data Sheet |
Negotiable |
|
||||
|
SI7495DP-T1-GE3 |
Vishay/Siliconix |
MOSFET 12V 21A 5.0W 6.5mohm @ 4.5V |
Data Sheet |
Negotiable |
|
||||
