Product Summary

The RT9711AGB is a micro-power voltage detector supervising the power supply voltage level for microprocessors (μP) or digital systems. The RT9711AGB provides user programmable threshold levels with 0.1V step ranging from 1.5V to 5V, which covers most digital applications. The RT9711AGBfeatures low supply current of 3μA. Applications of the RT9711AGB include: Computers Controllers, Intelligent Instruments, Critical μP and μC Power Monitoring and Portable/Battery-Powered Equipment.

Parametrics

RT9711AGB absolute maximum ratings: (1) Terminal Voltage (with Respect to GND) VDD: -0.3V to 6.0V; (2) All Other Inputs: -0.3V to VDD +0.3V; (3) Input Current, VDD: 20mA; (4) Continuous Power Dissipation, PD @ TA=25°C: 0.25W; (5) Operating Junction Temperature Range: -40°C to 125°C; (6) Storage Temperature Range: –65°C to 125°C; (7) Package Thermal Resistance: 250°C /W; (8) Lead Temperature (Soldering, 10sec.) : 260°C.

Features

RT9711AGB features: (1) User Programmable Threshold 1.5V to 5V in 0.1V Step with ±3% Accuracy; (2) Low Supply Current 3μA; (3) Quick Reset within 20s; (4) Built-in Recovery Delay 200ms; (5) Low Functional Supply Voltage 0.9V; (6) Small SOT-23-6 Package; (7) RoHS Compliant and 100% Lead (Pb)-Free.

Diagrams

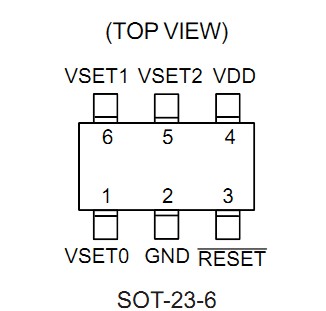

RT9711AGB Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RT9711AGB
RT9711AGB


IC PWR SWITCH USB 1.5A SOT23-5

Data Sheet

0-9000: $0.09
RT9711AGBG
RT9711AGBG


IC PWR SWITCH USB 1.5A SOT23-5

Data Sheet

0-9000: $0.09
