Product Summary

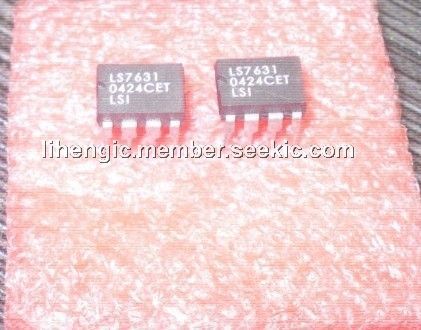

The LS7631 is a touch control halogen lamp dimmer. The applications of the device are wall switch control of ceiling mounted lighting, foot switch control of large floor lamps and hand switch control of table lamps.
Parametrics
LS7631 absolute maximum ratings: (1)DC supply voltage, VDD - VsS: +7V; (2)Any input voltage, VI N: Vss - 0.3 to VDD + 0.3V; (3)Operating temperature, TA: 0 to +90℃; (4)Storage temperature, TSTG: -65 to +150℃.
Features
LS7631 features: (1)Touch or pushbutton control of incandescent lamps and transformer-coupled halogen lamps. Magnetic transformers and most Electronic transformers; (2) Direct replacement for P/N SLB0587; (3)Automatic safety shutdown; (4)PLL synchronization allows use as a Wall Switch; (5)Three operating modes; (6)Extension input for remote activation; (7)50Hz/60Hz AC line frequency; (8)+5V operating voltage (VDD - VSS); (9)LS7631, LS7632 (DIP); LS7631-S, LS7632-S (SOIC).

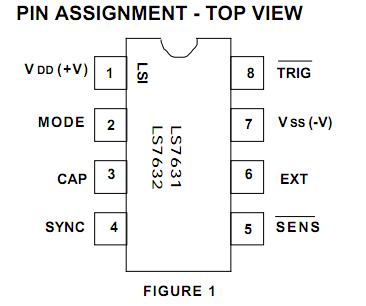

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LS7631 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LS7631 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LS7632 |
Other |
|
Data Sheet |
Negotiable |
|
||||
