Product Summary

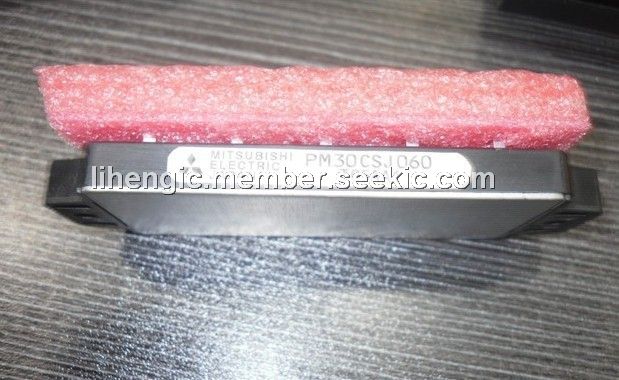

The PM30CSJ060 is a mitsubishi intelligent power module. It is isolated base modules designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices.
Parametrics
PM30CSJ060 absolute maximum ratings: (1)Power Device Junction Temperature: -20℃ to 150℃; (2)Storage Temperature: -40℃ to 125℃; (3)Case Operating Temperature: -20℃ to 100℃; (4)Mounting Torque, M4 Mounting Screws: 0.98 N·m ~ 1.47 N·m; (5)Module Weight: 60 Grams; (6)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part): 400 Volts; (7)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.
Features
PM30CSJ060 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Short Circuit; (4)Over Current; (5)Over Temperature; (6)Under Voltage.

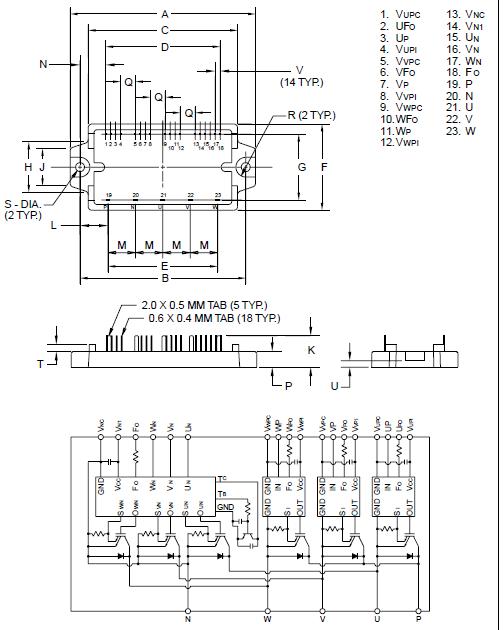

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM30CSJ060 |
|
MOD IPM 6PAC 600V 30A |
Data Sheet |
