Product Summary

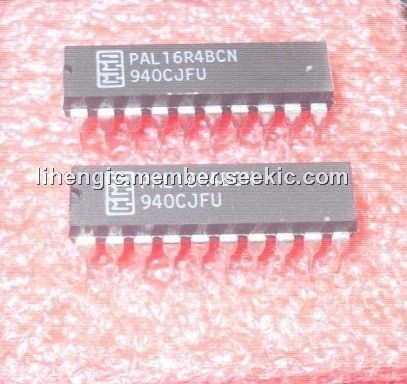

The PAL16R4BCNS is a 20 pin TTL programmable array logic. It is ideal for high-performance applicatiosn. The PAL16R4BCNS is provided with standard 20-pin DIP and PLCC pinouts and a 28-pin PLCC pinput.
Parametrics
PAL16R4BCNS absolute maximum ratings: (1)ambient temperature with power applied: -65 to 150℃; (2)storage temperature: -55 to 125℃; (3)supply votlage with respect to ground: -0.5 to 7.0V; (4)DC input voltage: -12V to VCC+0.5V; (5)DC input current: -30 to 5mA; (6)DC output or I/O pin voltage: -0.5 to VCC+0.5V; (7)static discharge voltage: 2001V.
Features
PAL16R4BCNS features: (1)as fast as 4.5ns maximum progagation delay; (2)popular 20-pin architectures; (3)programmable replacement for high-speed TTL logic; (4)register preload for testability; (5)power-up reset for initalization; (6)wxtensive third-party software and programmer support through fusionPLD partners; (7)20-pin DIP and PLCC packages save space; (8)28-pin PLCC-4 package provides ultra-clean high-speed signals.

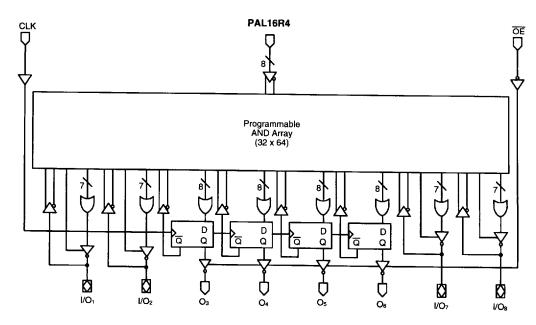

Diagrams
 |
