Product Summary
The MAX038CPP is a high-frequency, precision function generator producing accurate, high-frequency triangle, sawtooth, sine, square, and pulse waveforms with a minimum of external components. The output frequency can be controlled over a frequency range of 0.1Hz to 20MHz by an internal 2.5V bandgap voltage reference and an external resistor and capacitor.
Parametrics
Absolute maximum ratings: (1) V+ to GND:-0.3V to +6V; (2) DV+ to DGND:-0.3V to +6V; (3) V- to GND:+0.3V to -6V; (4) Pin Voltages: IIN, FADJ, DADJ, PDO: (V- - 0.3V) to (V+ + 0.3V), COSC:+0.3V to V-, A1, PDI, SYNC,REF: -0.3V to V+, GND to DGND: ±0.3V; (5) Maximum Current into Any Pin:±50mA; (6) OUT, REF Short-Circuit Duration to GND, V+, V-:30sec; (7) Continuous Power Dissipation (TA = +70°C): Plastic DIP (derate 11.11mW/°C above +70°C):889mW, SO (derate 10.00mW/°C above +70°C):800mW, CERDIP (derate 11.11mW/°C above +70°C):889mW; (8) Operating Temperature Ranges: 0°C to +70°C; (9) Maximum Junction Temperature:+150°C; (10) Storage Temperature Range:-65°C to +150°C; (11) Lead Temperature (soldering, 10sec):+300°C.
Features
Features: (1) 0.1Hz to 20MHz Operating Frequency Range; (2) Triangle, Sawtooth, Sine, Square, and Pulse Waveforms; (3) Independent Frequency and Duty-Cycle Adjustments; (4) 350 to 1 Frequency Sweep Range; (5) 15% to 85% Variable Duty Cycle; (6) Low-Impedance Output Buffer: 0.1Ω; (7) Low-Distortion Sine Wave: 0.75%; (8) Low 200ppm/°C Temperature Drift.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

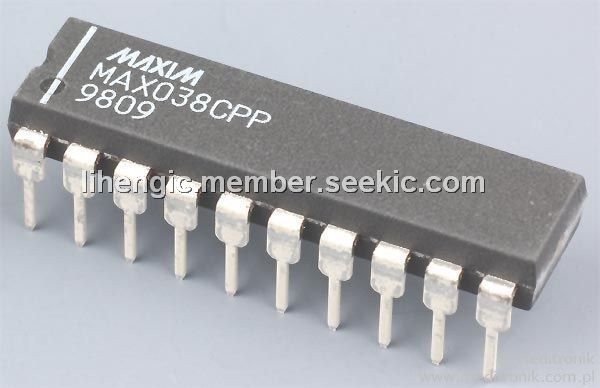

 MAX038CPP |
|
IC GEN WAVEFORM HI-FREQ 20-DIP |
Data Sheet |
Negotiable |
|
||||
|
MAX038CPP+ |
|
IC GEN WAVEFORM HI-FREQ 20-DIP |
Data Sheet |
Negotiable |
|
||||
