MB39A106

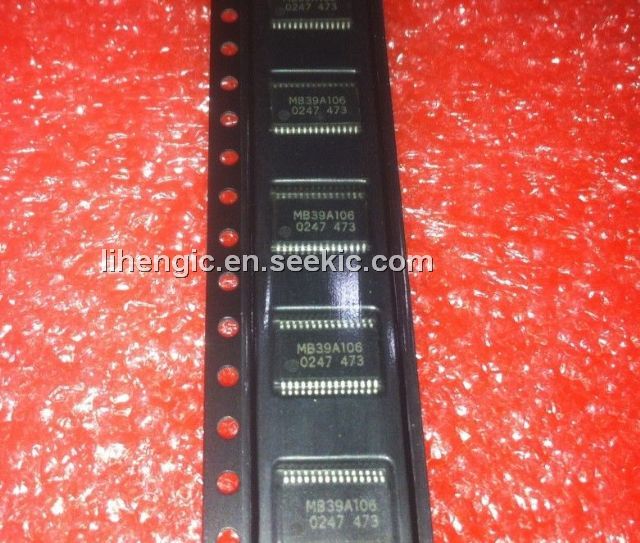

DC/DC converter IC, 800mA, 20V, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 200 :	0.10 / Piece
300 ~ 400 :	0.01 / Piece
500 ~ 600 :	0.00 / Piece

PartNumber:: MB39A106

Brand:: Fujifilm Holdings Corporation - Fujifilm | Pack: | D/C: 08+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Ally's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-21

From Other Seller

Part Number:MB39A106
US $0.00 - 0.10
Quantity:

piece

Product Summary

The MB39A106 is a symmetrical-phase type of two-channel, DC/DC converter IC using pulse width modulation (PWM) , incorporating an overcurrent protection circuit (requiring no current sense resistor) and an overvoltage protection circuit. Providing high output driving capabilities, the MB39A106 is suitable for down-conversion. Applications of the MB39A106 include: Home Video Game, IP phone, Printer.

Parametrics

MB39A106 absolute maximum ratings: (1) Power-supply voltage Vcc: 20V; (2) Boot voltage Vcb: 25V (CB terminal) ; (3) Output current Io: 120mA; (4) Peak output current: 800mA (Duty≤5%, t=1/fosc×duty) ; (5) Power dissipation Ta≤+25°C, PD: 1390W; (6) Storage temperature Tstg: 55°C to +125°C.

Features

MB39A106 features: (1) Built-in bootstrap diode; (2) Built-in timer-latch overcurrent protection circuit (requiring no current sense resistor) ; (3) Built-in timer-latch overvoltage protection circuit; (4) Synchronous rectification system providing high efficiency; (5) Power supply voltage range: 6.5V to 18V; (6) PWRGOOD terminals (open-drain) to output the protection status; (7) Symmetrical-phase system reducing the input capacitor loss; (8) Built-in channel control function; (9) One type of package (TSSOP-30pin : 1 type) ; (10) Reference voltage: 3.5V, ±1 %; (11) Error amplifier threshold voltage: 1.23 V 1 % (Ta=0°C; to + 85°C) ; (11) Oscillation frequency range: 100kHz to 500kHz; (12) uilt-in circuit for load-independent soft-start and discharge control; (13) Built-in totem-pole output for N-ch MOS FET; (14) One type of package (TSSOP-30 pin : 1 type) .
