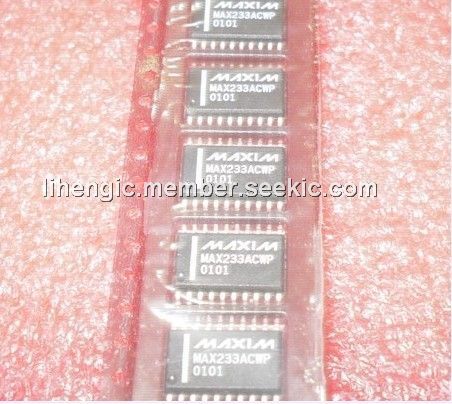

MAX233ACWP

+5V-Powered, Multichannel RS-232 Driver/Receiver, 20-SOIC, MAX233ACWP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.72~1.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.72~1.85

PartNumber:: MAX233ACWP

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ally's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-08

From Other Seller

Part Number:MAX233ACWP
US $0.72 - 1.85
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX233ACWP is a line driver/receiver. It is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX233ACWP is especially useful in battery-powered systems, since its low-power shutdown mode reduces power dissipation to less than 5μW. The MAX233ACWP uses no external components and are recommended for applications where printed circuit board space is critical. The applications of the MAX233ACWP are Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems, Multidrop RS-232 Networks.

Parametrics

MAX233ACWP absolute maximum ratings: (1)VCC:-0.3V to +6V; (2)V+ :(VCC - 0.3V) to +14V; (3)V- :+0.3V to -14V; (4)Input Voltages: TIN:-0.3V to (VCC - 0.3V), RIN:±30V, TOUT:±15V; (5)Output Voltages: TOUT:±15V, ROUT:-0.3V to (VCC + 0.3V); (6)Driver/Receiver Output Short Circuited to GND:Continuous; (7)Operating Temperature Ranges:0℃ to +70℃; (8)Storage Temperature Range:-65℃ to +160℃; (9)Lead Temperature (soldering, 10s):+300℃; (10)Soldering Temperature (reflow):+260℃, All other packages containing lead(Pb):+240℃.

Features

MAX233ACWP features: (1)For Low-Voltage, Integrated ESD Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP Package); (2)For Low-Cost Applications MAX221E: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.
