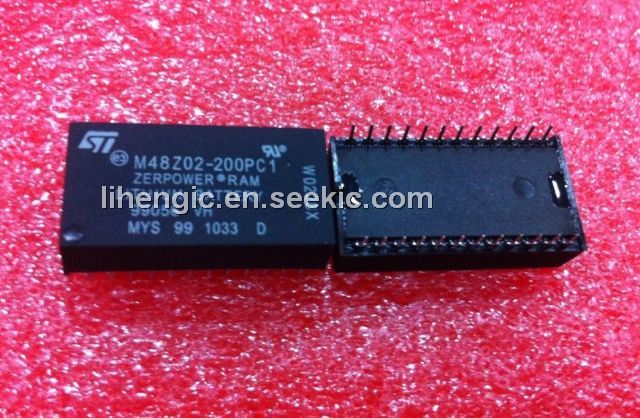

Product Summary

The M48Z02-200PC1 zeropower SRAM is a 2Kx8 non-volatile static RAM which is pin and functional compatible with the DS1220. The button cell of the M48Z02-200PC1 has sufficient capacity and storage life to maintain data functionality for an accumulated time period of at least 10 years in the absence of power over commercial operating temperature range. The M48Z02-200PC1 is a non-volatile pin and functionequivalent to any JEDEC standard 2K x 8 SRAM.

Parametrics

M48Z02-200PC1 absolute maximum ratings: (1) Ambient Operating Temperature: 0 t0 70°C (Grade 1) , -40 to 85°C (Grade 6) ; (2) Storage Temperature (Vcc Off, Oscillator Off) Tstg: -40 to 85°C; (3) Lead Solder Temperature for 10 seconds TSLD: 260°C; (4) Input or Output Voltages VIO: -0.3V to 7V; (5) Supply Voltage Vcc: -0.3V to 7V; (6) Output Current Io: 20mA; (7) Power Dissipation PD: 1W.

Features

M48Z02-200PC1 features: (1) integrated, ultra low power SRAM and power-fail control circuit; (2) unlimited write cycles; (3) read cycle time equals write cycle; (4) autimatic power-fail chip deselect and write protection; (5) write protect voltages; (6) self-contained battery in the CAPHAT DIP package; (7) Pin and function compatible with JEDEC standard 2K×8 SRAMs.

Diagrams

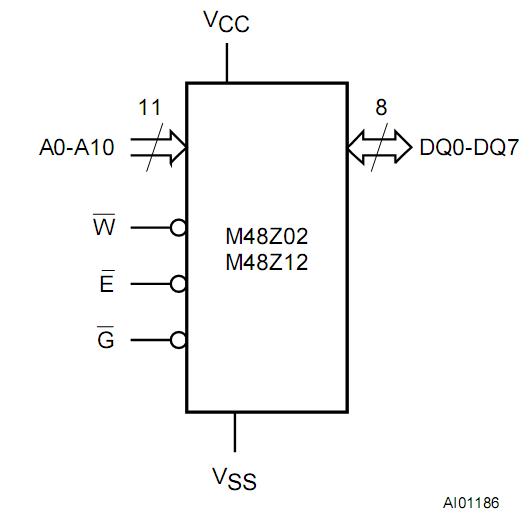

M48Z02-200PC1 Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

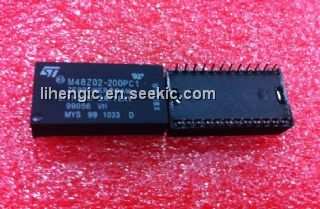

M48Z02-200PC1
M48Z02-200PC1

STMicroelectronics

NVRAM 16K (2Kx8) 200ns

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M48Z02
M48Z02

Other


Data Sheet

Negotiable
M48Z02-150PC1
M48Z02-150PC1

STMicroelectronics

NVRAM 16K (2Kx8) 150ns

Data Sheet

0-1: $5.51
1-10: $4.96
10-100: $4.07
100-250: $3.74
M48Z02-70PC1
M48Z02-70PC1

STMicroelectronics

NVRAM 16K (2Kx8) 70ns

Data Sheet

0-1: $5.51
1-10: $4.96
10-100: $4.07
100-250: $3.74
M48Z02-150PC6
M48Z02-150PC6

STMicroelectronics

NVRAM 16K (2Kx8) 150ns

Data Sheet

Negotiable
M48Z02-200PC1
M48Z02-200PC1

STMicroelectronics

NVRAM 16K (2Kx8) 200ns

Data Sheet

Negotiable
