Product Summary

The KBPC5010 is a high current bridge rectifier.

Parametrics

KBPC5010 maximum ratings: (1) Peak Repetitive Reverse Voltage VRRM: 1000V, Working Peak Reverse Voltage VRWM: 1000V, DC Blocking Voltage VR: 700V; (2) RMS Reverse Voltage: 700V; (3) Average Rectifier Output Current@Tc=55°C, Io: 50A; (4) Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave Superimposed on rated load (JEDEC Method) IFSM: 400A; (5) Forward Voltage Drop KBPC50@Tc=25A: 1.2V; (6) Peark Reverse Current@Tc=25°C, IRM: 1.0μA, At Rated DC Blocking Voltage@Tc=125°C: 1.0mA.

Features

KBPC5010 features: (1) Diffused Junction; (2) Low Reverse Leakage Current; (3) Low Power Loss, High Efficiency; (4) Electrically Isolated Metal Case for Maximum Heat Dissipation; (5) Case to Terminal Isolation Voltage 2500V; (6) UL Recognized File # E157705.

Diagrams

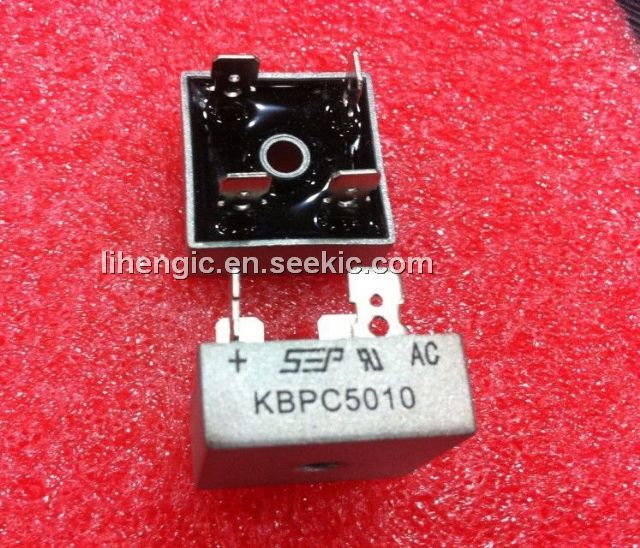

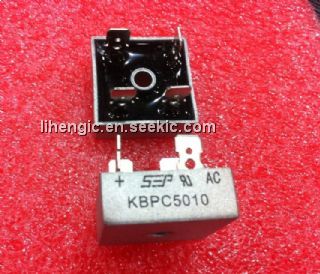

KBPC5010 Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
KBPC5010
KBPC5010
Other

Data Sheet
Negotiable
KBPC5010-G
KBPC5010-G
Comchip Technology
Bridge Rectifiers DIODE RECT BRIDGE 50A 1000V
Data Sheet
0-1: $1.48
1-10: $1.44
10-100: $1.40
100-250: $1.34
KBPC5010W-G
KBPC5010W-G
Comchip Technology
Bridge Rectifiers DIODE RECT BRIDGE 50A 1Kv
Data Sheet
0-1: $1.48
1-10: $1.44
10-100: $1.40
100-250: $1.34
KBPC5010W
KBPC5010W
Other

Data Sheet
Negotiable
