Product Summary

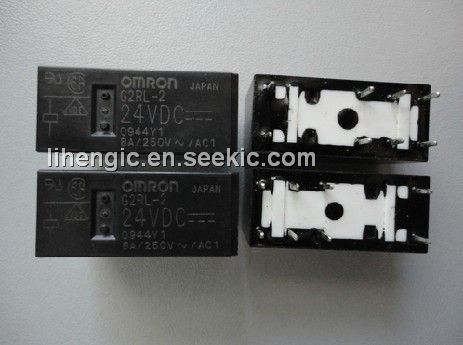

The G2RL-2-24VDC is a power relay with various models.

Parametrics

G2RL-2-24VDC ratings: (1) Rated voltage: 24VDC; (2) Rated Current: 16.7mA; (3) Coil resistance: 1,440Ω; (4) Must operate voltage: 70% max. of the rated voltage; (5) Must release voltage: 10% min. of the rated voltage; (6) Max. voltage: 180% of rated voltage (at 23°C) ; (7) Power consumption: Approx. 400mW.

Features

G2RL-2-24VDC features: (1) High-sensitivity (250 mW) and High-capacity (16A) versions; (2) Designed for cooking and HVAC controls: blower motor, damper, active air purification, duct flow boost fans, etc; (3) Conforms to VDE (EN61810-1). UL recognized/ CSA certiified; (4) Meets EN60335-1 requirements for household products; (5) Clearance and creepage distance: 10mm/10mm; (6) Tracking resistance: CTI>250; (7) Coil Insulation system: Class F; (8) RoHS Compliant.

Diagrams

G2RL-2-24VDC Dimension
