Product Summary

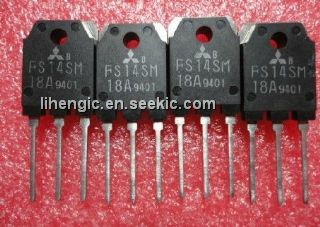

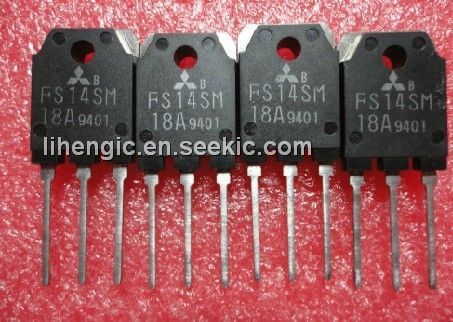

FS14SM18A is a mitsubiashi Nch power mosfet. Applications of the FS14SM18A include: SMPS, DC-DC converter, battert charger, power supply of printer, copier, HDD, FDD, TV, VCR, personal computer.

Parametrics

FS14SM18A maximum ratings: (1) Drain-source voltage VDSS VGS=0V: 900V; (2) Gate-source voltage VDS=0V: ±30V; (3) Drain current ID: 14A; (4) Drain current (Pulsed) IDM: 42A; (5) Maximum power dissipation PD: 275W; (6) Channel temperature Tch: -55 to +150°C; (7) Storage temperature Tstg: -55 to +150°C.

Diagrams

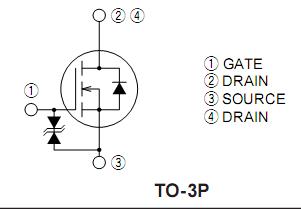

FS14SM18A Circuit
