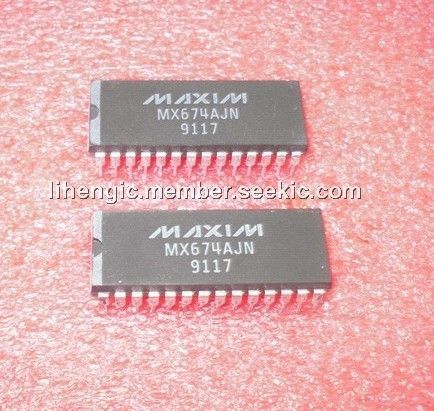

MX674AJN

12 bit, analog-to-digital conveter, DIP28P, 0V to -16.5V, 100mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.00~10.00

PartNumber:: MX674AJN

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ally's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-07

From Other Seller

Part Number:MX674AJN
US $7.00 - 10.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

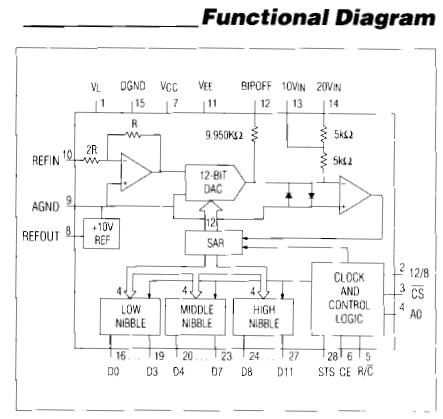

Product Summary

The MX674AJN is a complete 12 bit analog-to-digital conveter (ADC) that combines high speed, low power consumption, adn on-chip clock and voltage reference. The maximum convesion time is 25μs. BiCMOS construction of the MX674AJN reduces power dissipatrion 3 times over comparable device. The internal buried zener reference provides low-drift and low noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure of the MX674AJN allows for 0 to 10V or 0 to 20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping. The MX674AJN uses standard microprocessor interface architectures and can be interfaced to 8-, 12- and 16-bit wide buses. Thress-state data outputs are controlled by CS, CE and R/C logic inputs. The applications of the MX674AJN include digital singal processing, high-accuracy process control, high-speed data acquisition and electro-mechanical systems.

Parametrics

MX674AJN absolute maximum ratings: (1)VCC to DGND: 0 to 16.5V; (2)VEE to DGND: 0V to -16.5V; (3)VL to DGND: 0 to 7V; (4)control inputs to DGND: -0.3 tp VCC+0.3V; (5)digital output voltage to DGND: -0.3V to VL+0.3V; (6)analog inputs to AGND: ±16.5V; (7)20VIN to AGND: ±24V; (8)REFOUT: indefinite short to VCC or AGND; (9)power dissipation to 75℃: 100mW; derates above 75℃by: 10mW/℃; (10)operating temperature ranges: 0 to 70℃; (11)storage temperature range: -65 to 160℃; (12)lead temperature range: 300℃.

Features

MX674AJN features: (1)complete ADC with reference and clock; (2)12 bit resolution and linearity; (3)no missing codes over temperature; (4)150mW power dissipation; (5)25μs max conversion times; (6)precision low TC reference: 10ppm/C; (7)monolithic BiCMOS construction; (8)150ns maximum data access time.
