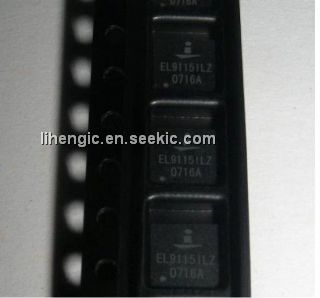

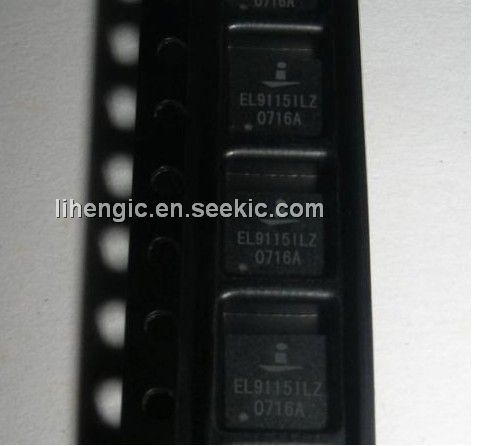

EL9115ILZ is a triple analog delay line that allows skew compensation between any three signals. The EL9115ILZ is perfect for compensating for the skew introduced by a typical CAT-5 cable with differing electrical lengths on each pair. The EL9115ILZ can be programmed in steps of 2ns up to 62ns total delay on each channel. Applications of the EL9115ILZ include: Skew control for RGB and Analog beamforming.
Parametrics
EL9115ILZ absolute maximum ratings: (1) Supply Voltage (Vs+ to V-) : 12V; (2) Maximum Output Current: ±60mA; (3) Storage Temperature Range: -65°C to +150°C; (4) Operating Junction Temperature: +135°C; (5) Ambient Operating Temperature: -40 to +85°C.
Features
EL9115ILZ features: (1) 62ns total delay; (2) 2ns delay step increments; (3) Operates from ±5V supply; (4) Up to 122MHz bandwidth; (5) Low power consumption; (6) 20-pin QFN (5mm x 5mm) package; (7) Pb-Free plus anneal available (RoHS compliant) .

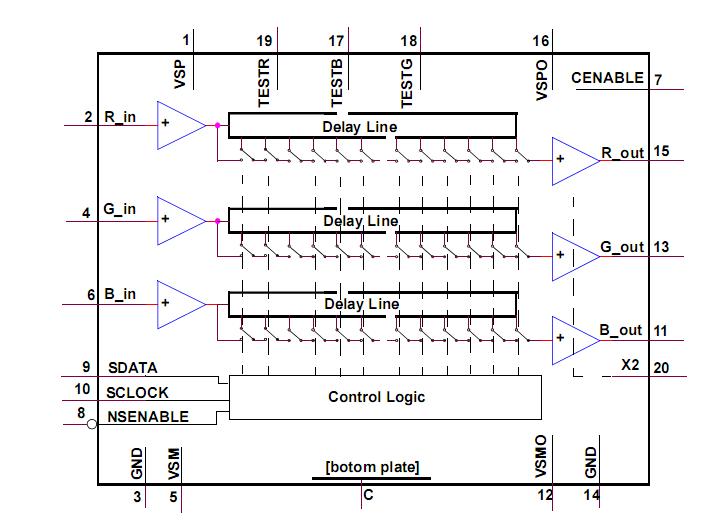

Diagrams
