Product Summary

EL5420CRZ is a low power, high voltage, rail-to-rail input-output amplifier.The EL5420CRZ has a bandwidth of 12MHz (-3dB) . The EL5420CRZ provides common mode input ability beyond the supply rails, as well as rail-to-rail output capability. Applications of the EL5420CRZ include: TFT-LCD Drive Circuits, Electronics Notebooks, Touch-Screen Displays, Personal Digital Assistants (PDA) , Portable Instrumentation, Sampling ADC Amplifiers, Wireless LANs, Office Automation, Active Filters and ADC/DAC Buffer.

Parametrics

EL5420CRZ absolute maximum ratings: (1) Supply Voltage between VS+ and VS-: +18V; (2) Input Voltage: VS -0.5V, VS +0.5V; (3) Maximum Continuous Output Current: 30mA; (4) Maximum Die Temperature: +125°C; (5) Storage Temperature: -65°C to +150°C; (6) Ambient Operating Temperature: -40°C to +85°C.

Features

EL5420CRZ features: (1) 12MHz -3dB Bandwidth; (2) Supply Voltage = 4.5V to 16.5V; (3) Low Supply Current (per Amplifier) = 500μA; (4) High Slew Rate = 10V/μS; (5) Unity-Gain Stable; (6) Beyond the Rails Input Capability; (7) Rail-to-Rail Output Swing; (8) Ultra-Small Package; (9) Pb-Free Available (RoHS Compliant) .

Diagrams

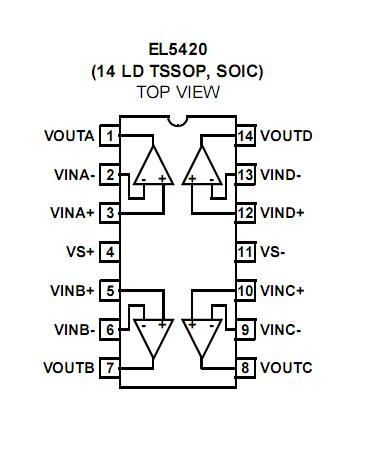

EL5420CRZ Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EL5420CRZ
EL5420CRZ
Intersil
High Speed Operational Amplifiers EL5420CRZ 12MHZ QUAD RAIL INPUTOUTPUT OP
Data Sheet
0-1: $1.73
1-25: $1.47
25-100: $1.03
100-500: $0.80
EL5420CRZ-T13
EL5420CRZ-T13
Intersil
High Speed Operational Amplifiers EL5420CRZ 12 MHZ QD R2R I/O OP
Data Sheet
0-1240: $1.25
1240-2500: $0.77
EL5420CRZ-T7
EL5420CRZ-T7
Intersil
High Speed Operational Amplifiers EL5420CRZ 12 MHZ QD R2R I/O OP
Data Sheet
0-500: $1.25
500-1000: $0.77
EL5420CRZ-T7A
EL5420CRZ-T7A

IC OPAMP GP RR 12MHZ QD 14TSSOP
Data Sheet
0-250: $1.13
