Product Summary

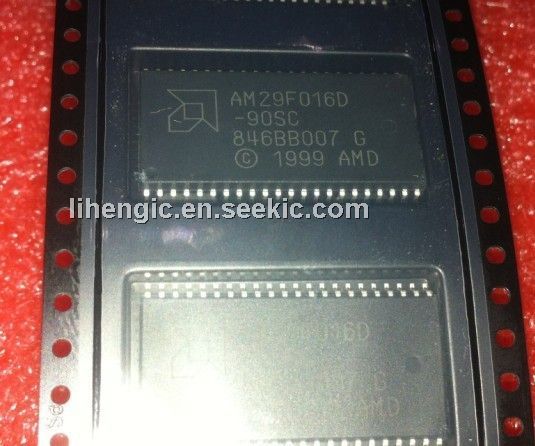

The AM29F016D-90SC is a 16 Mbit, 5.0 volt-only Flash memory organized as 2,097,152 bytes. The AM29F016D-90SC is offered in 48-pin TSOP, 40-pin TSOP, and 44-pin SO packages. The AM29F016D-90SC is designed to be programmed in-system with the standard system 5.0 volt VCC supply.
Parametrics
AM29F016D-90SC absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65°C to +125°C; (2) Ambient Temperature with Power Applied: -55°C to +125°C; (3) Voltage with Respect to Ground, VCC: -2.0V to 7.0V, A9 OE#, RESET#: -2.0V to 12.5V; (4) All other pins: -2.0V to 7.0V; (5) Output Short Circuit Current: 200mA.
Features
AM29F016D-90SC features: (1) 5.0V ±10%, single power supply operation; (2) Manufactured on 0.23μmprocess technology; (3) High performance; (4) Low power consumption; (5) Flexible sector architecture; (6) Embedded Algorithms; (7) Unlock Bypass Program Command; (8) Minimum 1,000,000 program/erase cycles per sector guaranteed; (9) Compatible with JEDEC standards; (10) Erase Suspend/Erase Resume.

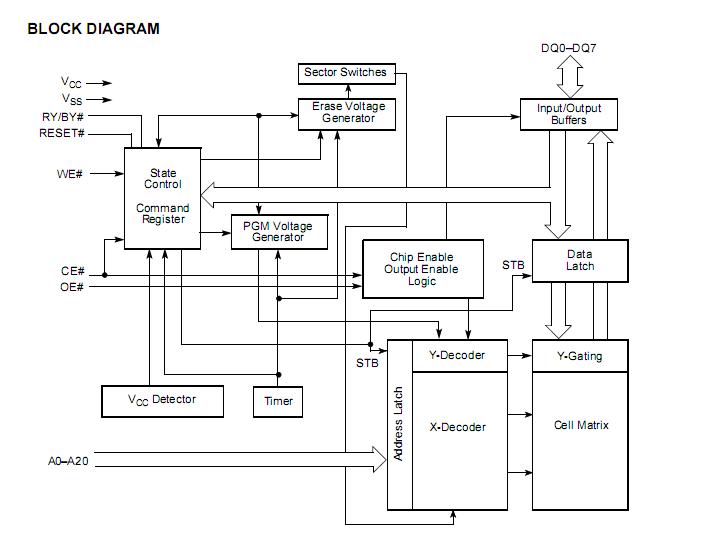

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |

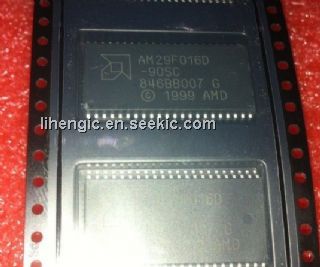

![]() AM29F016D-90SC |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
