Product Summary

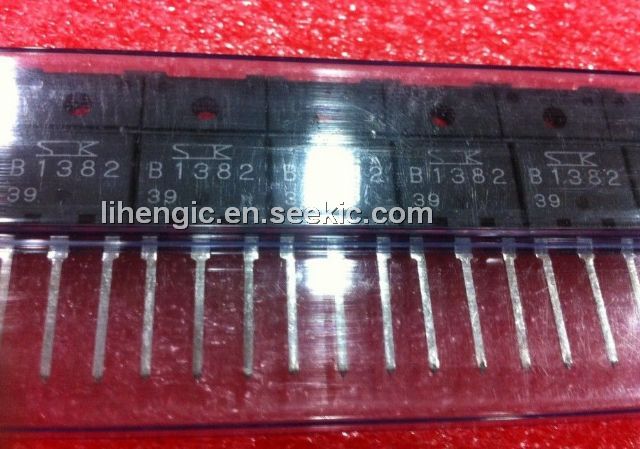

The 2SB1382 is a silicon PNP epitaxial planar transistor.
Parametrics
2SB1382 absolute maximum ratings: (1) VCBO: -120V; (2) VCEO: -120V; (3) VEBO: =6V; (4) Ic: -16 (Pulsed-26) A; (5) IB: -1A; (6) Pc: 75W (Tc=25°C) ; (7) Tj: 150°C; (8) Tstg: -55 to +150°C.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SB1382 |
Other |
|
Data Sheet |
Negotiable |
|
||||
