Product Summary

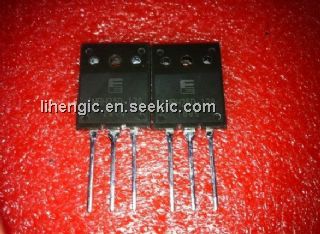

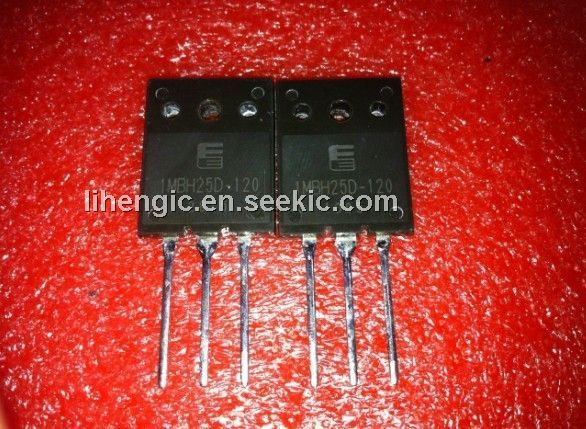

The 1MBH25D-120 is an IGBT and FWD. Applcations of the 1MBH25D-120 include: High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
1MBH25D-120 absolute maximum ratings: (1) Collector-Emitter Voltage VCES: 1200V; (2) Gate -Emitter Voltage VGES: ±20V; (3) Collector Current DC Tc=25°C, IC25: 38A, DC Tc=100°C, Ic100: 25A; (4) IGBT Max. Power Dissipation Pc: 310W; (5) FWD Max. Power Dissipation Pc: 145W; (6) Operating Temperature Tj: +150°C; (7) Storage Temperature Tstg: -40 to +150°C; (8) Mounting Screw Torque: 70Nm.
Features
1MBH25D-120 features: (1) Square RBSOA; (2) Low Saturation Voltage; (3) Less Total Power Dissipation; (4) Minimized Internal Stray Inductance.

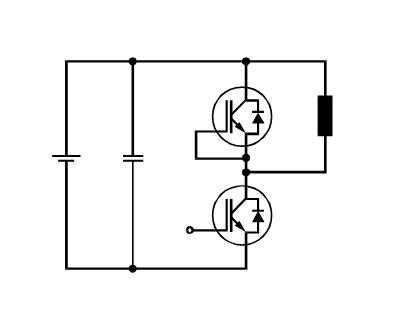

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 1MBH25D-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
